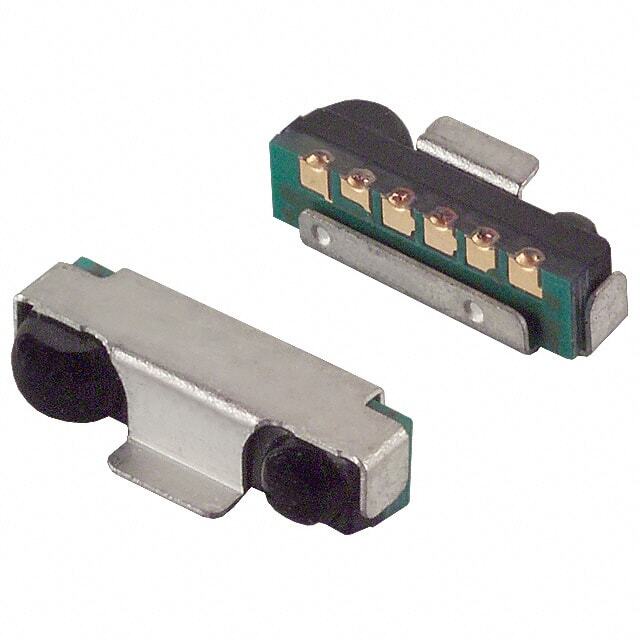

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - IrDA Transceiver Modules
Mfr Sharp Microelectronics
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Data Rate 115.2kbs (SIR)
Voltage - Supply 2 V ~ 3.6 V
Idle Current, Typ @ 25°C 90 µA
Link Range, Low Power 20cm
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C
Size 7.2mm x 2.8mm x 1.9mm
Standards IrPHY 1.2
Shutdown Yes
Standard Package 2,000 pcs
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 852769-GP2W0116YPS
Ultra Librarian 3D Model Ultra Librarian GP2W0116YPS CAD Model

Description

The 852769-GP2W0116YPS is an IrDA transceiver module manufactured by Sharp Microelectronics.

  • Product Name: 852769-GP2W0116YPS
  • Manufacturer: Sharp Microelectronics
  • Type: IrDA Transceiver Module
  • Category: Sensors and Transducers
  • Data Rate: 115.2kbs (SIR)
  • Voltage Supply: 2V to 3.6V
  • Package: Tape and Reel
  • Standard Package Quantity: 2,000 pieces
  • Size: 7.2mm x 2.8mm x 1.9mm
  • Standard Compliance: IrPHY 1.2
  • Idle Current: 90 μA @ 25°C
  • Link Range: 20cm (Low-Power Mode)
  • Shutdown Functionality: Supported
  • Status: Obsolete
