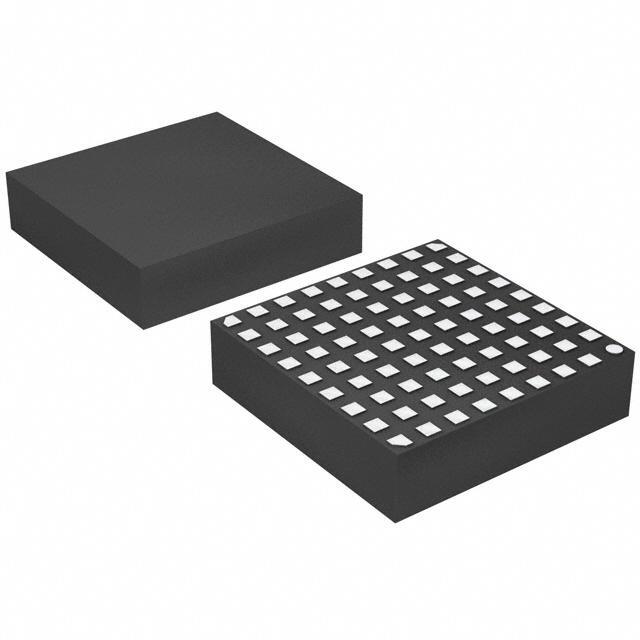

The LTM9001CV-BA#PBF by Linear Technology is an RF-to-digital µModule® receiver that includes a high performance mixer, a wide dynamic range IF amplifier, and a 14-bit, 125Msps analog-to-digital converter (ADC) designed for high performance applications in communication systems. This integrated solution is housed in a compact 15mm x 15mm surface mount LGA package, streamlining the design process for system engineers and reducing time to market.

Key Features

• Integrated RF Receiver: The LTM9001CV-BA#PBF combines a high-linearity mixer, IF amplifier, and high-speed ADC into a single package, providing a complete RF-to-digital conversion subsystem.
• High Performance: With a 14-bit, 125Msps ADC, this product is capable of capturing a wide range of frequencies with excellent resolution, making it ideal for demanding communication applications.
• Wide Dynamic Range: The integrated IF amplifier ensures a wide dynamic range, allowing the receiver to handle weak and strong signals with high fidelity.
• Compact Design: The LGA package measures just 15mm x 15mm, saving board space and simplifying the overall design of the RF system.
• Easy Integration: The µModule® design encapsulates the complexity of RF design, making it easier to integrate into a variety of systems without the need for specialized RF expertise.

Applications

The LTM9001CV-BA#PBF is ideal for a range of communication applications, including:

• Wireless base stations
• Software-defined radios (SDR)
• Communications test equipment
• Satellite communications
• Signal intelligence

Quality and Reliability

Linear Technology is known for its commitment to quality and reliability, and the LTM9001CV-BA#PBF is no exception. It is designed to meet the stringent requirements of communication infrastructure, ensuring long-term performance and stability.
