Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Tube
Type Hot Swap Controller, OR Controller
Number of Channels 1
Internal Switch(s) No
Applications General
Features Auto Retry, UVLO
Programmable Features Current Limit, Fault Timeout, Slew Rate
Operating Supply Voltage 2.9 V ~ 18 V
Operating Temperature Range 0°C ~ 70°C
Operating Supply Current 2mA
Mounting SMD

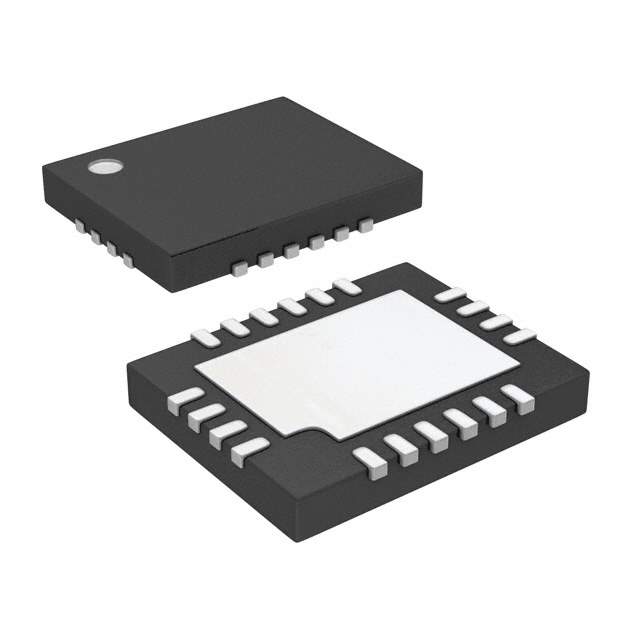

Package 20-WFQFN Exposed Pad
Manufacturer Package 20-QFN (5x4)
Feature Pins CPO1, CPO2, /EN, /FAULT, INTVCC, ON, OUT, /PWRGD, TMR
Win Source Part Number 783968-LTC4227CUFD-2#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTC4227
Introduction Date February 23, 2011
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LTC4227CUFD-2#PBF CAD Model

Description

The LTC4227CUFD-2#PBF from Linear Technology is a sophisticated dual ideal diode and Hot Swap™ controller designed to ensure safe board insertion and removal from live backplanes. The device offers a seamless transition between two power sources, which is crucial for systems that require uninterrupted availability and redundancy.

Key Features

  • Dual Ideal Diode Controller: The LTC4227CUFD-2#PBF integrates two ideal diode controllers to minimize power loss and prevent reverse current, ensuring efficiency and protection in power delivery.
  • Hot Swap Controller: This product includes a Hot Swap controller that enables safe insertion and removal of boards by controlling the inrush of current to the capacitors.
  • Wide Operating Voltage Range: The device operates over a wide range of voltages from 2.9V to 18V, accommodating various supply levels and ensuring versatility across different applications.
  • Adjustable Current Limit: Users can set the desired current limit through an external resistor, providing flexibility and precision for different scenarios and load requirements.
  • Power Good Output: The LTC4227CUFD-2#PBF features a 'power good' output signal that indicates when the output voltage is within the acceptable range, allowing for reliable system monitoring.
  • Compact Package: The device is available in a 24-pin 4mm × 5mm QFN package, making it suitable for space-constrained applications while still offering excellent thermal performance.

Applications

The LTC4227CUFD-2#PBF is ideal for a range of applications that demand high reliability and power management efficiency, including:

  • Redundant Power Supplies
  • Industrial Systems
  • Telecommunication Infrastructure
  • Datacom Applications
  • High-Availability Servers and Storage Units

Conclusion

In summary, the LTC4227CUFD-2#PBF from Linear Technology is a robust power management solution that combines dual ideal diode and Hot Swap functionalities. Its wide voltage range, adjustable current limit, and compact form factor make it a versatile choice for ensuring safe and efficient power distribution in critical systems.
