Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Hot Swap Controllers
Mfr Maxim Integrated
Package Bulk
Product Status Active
Type Hot Swap Controller
Number of Channels 1
Internal Switch(s) Both
Applications General Purpose
Features Fault Timeout, Latched Fault, Turn On Voltage, UVLO
Programmable Features Circuit Breaker, Current Limit, Fault Timeout, Slew Rate, Turn On Voltage, UVLO
Voltage - Supply 1V ~ 13.2V
Current - Output (Max) 20mA
Temperature Range - Operating -40°C ~ 85°C (TA)
Current - Supply 1.5 mA
Mounting Type Surface Mount
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-uMAX
Base Product Number MAX5924
Standard Package 131 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 631642-MAX5924AEUB
Ultra Librarian 3D Model Ultra Librarian MAX5924AEUB CAD Model

Description

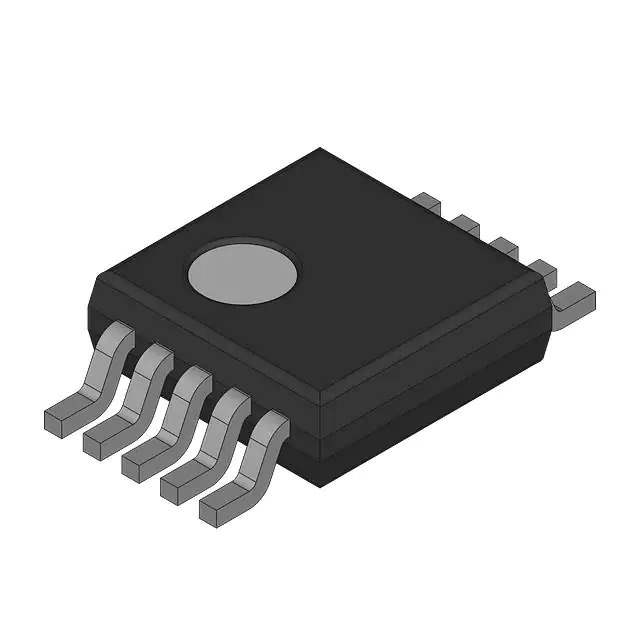

Maxim Integrated MAX5924AEUB Hot-Swap Controllers

The MAX5924AEUB from Maxim Integrated is a sophisticated hot-swap controller designed to provide safe insertion and removal of circuit boards from live backplanes. This advanced component is housed in a compact, 10-pin µMAX package, making it an excellent choice for space-constrained applications.

Equipped with integrated features, the MAX5924AEUB offers adjustable overcurrent protection and circuit-breaker functionality. Its precise current-sensing capability ensures reliable protection against overcurrent conditions, thereby safeguarding both the device and the system from potential damage. The hot-swap controller operates over a wide voltage range of 1V to 13.2V, making it versatile for various applications.

The device boasts an adjustable analog current limit that can be set by an external resistor, providing designers with the flexibility to tailor the protection according to the specific needs of their application. Additionally, the MAX5924AEUB features an auto-retry or latch-off response to fault conditions, which helps in managing system responses during overcurrent events.

With its undervoltage lockout (UVLO) feature, the MAX5924AEUB ensures that the hot-swap event does not occur until the supply voltage reaches a safe operating level. This feature is critical in preventing malfunctions caused by low voltage conditions. Moreover, the device includes a thermal shutdown mechanism that provides additional protection by turning off the external MOSFET when the die temperature exceeds safe limits.

The MAX5924AEUB is suitable for a wide range of applications, including servers, storage systems, network routers, and other hot-swappable equipment. Its robust feature set ensures that systems can be maintained and upgraded without the need for power-down, reducing downtime and increasing the reliability of the overall system.

For design flexibility and ease of integration, Maxim Integrated provides comprehensive technical documentation, including datasheets and application notes, to assist engineers in implementing the MAX5924AEUB into their designs. With its advanced protection features and compact size, the MAX5924AEUB is an ideal choice for any hot-swap application requiring high reliability and performance.
