Product Overview: LTC4008EGN#PBF

The LTC4008EGN#PBF from Linear Technology is a high-efficiency, multi-chemistry battery charger controller designed to cater to the demanding requirements of modern portable electronics. This sophisticated component is ideal for charging systems that require precise control and reliability, such as laptops, medical equipment, and handheld devices.

Key Features

• Multi-Chemistry Support: The LTC4008EGN#PBF is compatible with a variety of battery chemistries, including Lithium-Ion (Li-Ion), Lithium Polymer (Li-Poly), and Lithium Phosphate (LiFePO4), giving it a broad range of applications.
• High Efficiency: With its advanced design, the charger provides high efficiency, which is crucial for reducing heat and improving the overall battery charging process.
• Programmable Charge Current: Users can set the charge current up to 4A, allowing for flexibility in the charging process depending on the battery's capacity and the desired charging speed.
• Wide Input Voltage Range: The device can operate with input voltages ranging from 4.5V to 28V, accommodating various power sources and ensuring compatibility with different system designs.
• Charge Current Monitoring: The LTC4008EGN#PBF includes a feature for monitoring the charge current, which helps in managing the charging process and protecting the battery from overcharging.

Advanced Protection Features

The LTC4008EGN#PBF is equipped with multiple protection features to ensure the safety and longevity of the battery and the device. These include overvoltage protection, thermal regulation, and a shutdown feature that kicks in when an unsafe condition is detected.

Package and Temperature Range

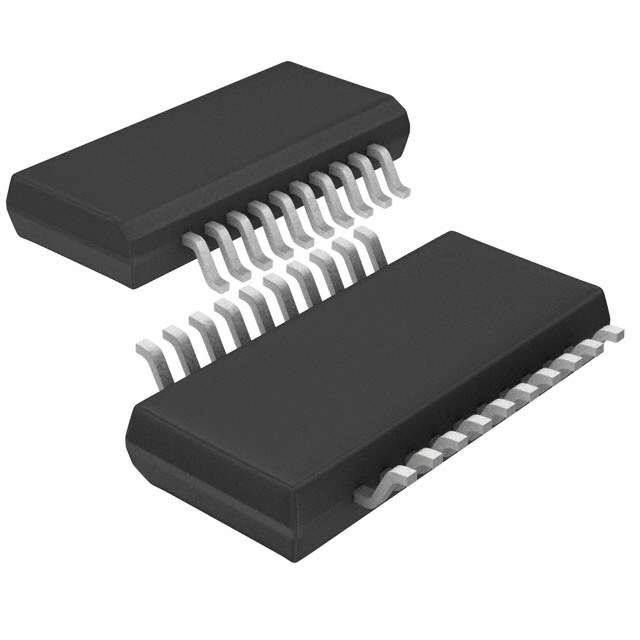

Encased in a 24-lead SSOP package, the LTC4008EGN#PBF is designed for compactness and minimal footprint on the PCB. It operates over an industrial temperature range of -40°C to 85°C, ensuring reliable performance in a variety of environments.

Conclusion

Linear Technology's LTC4008EGN#PBF is a versatile and robust battery charger controller that offers precision, efficiency, and safety for charging applications. Its support for multiple battery chemistries and advanced protection features make it an excellent choice for designers looking to create reliable and high-performance battery charging solutions.
