Linear Technology LTC3455EUF#PBF Dual DC/DC Converter

The LTC3455EUF#PBF is a versatile dual DC/DC converter designed by Linear Technology to cater to the growing needs of compact and efficient power management solutions. This high-performance integrated circuit is ideal for portable applications, providing both a high-efficiency synchronous step-down converter and a full-featured linear charger for single-cell lithium-ion batteries.

Key Features:

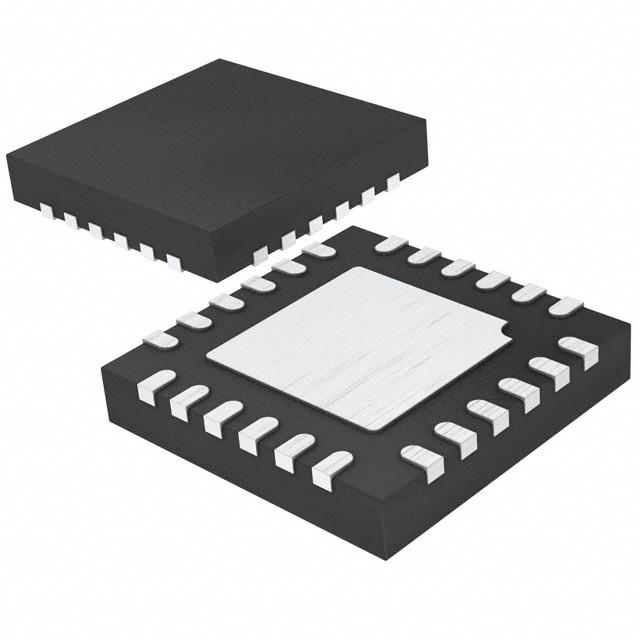

• Integrated Power Solution: The LTC3455EUF#PBF combines a switch-mode power supply and a linear battery charger in a compact 24-lead QFN package, optimizing board space and reducing component count.
• High Efficiency: The synchronous step-down converter operates at up to 95% efficiency, ensuring minimal power loss and extended battery life for portable devices.
• Flexible Power Management: With an input voltage range of 2.5V to 5.5V, the device can be powered from a variety of sources including USB ports and wall adapters.
• Programmable Charge Rate: The linear charger provides a programmable charge rate up to 1A, allowing for rapid charging of lithium-ion batteries.
• Thermal Regulation: To protect the battery and circuitry, the LTC3455EUF#PBF features thermal regulation, which reduces charge current if the die temperature exceeds a safe threshold.
• Multiple Safety Features: The device includes overvoltage protection, thermal shutdown, and a charge current monitor for enhanced safety and reliability.

Applications:

The LTC3455EUF#PBF is well-suited for a wide range of portable applications, including:

• Smartphones and PDAs
• Digital Cameras
• Portable Media Players
• Handheld Instruments

With its compact size, high efficiency, and comprehensive feature set, the LTC3455EUF#PBF from Linear Technology is an excellent power management solution that meets the demands of modern portable electronics. Its ability to manage power and charge batteries efficiently makes it an indispensable component in any battery-powered device.
