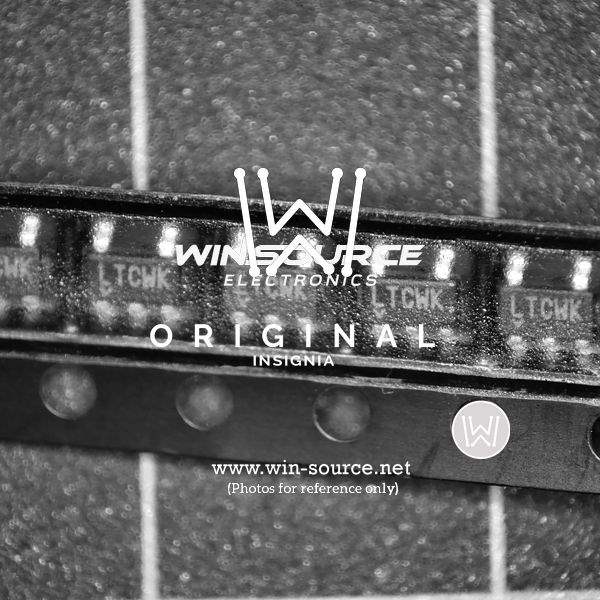

Product Overview: LT6106IS5#TRMPBF

The LT6106IS5#TRMPBF is a high-side current sense amplifier designed by Linear Technology to offer a precise, easy-to-use solution for applications requiring current monitoring. This compact and efficient component is housed in a small SOT-23 package, making it an ideal choice for space-constrained applications. The LT6106IS5#TRMPBF is well-suited for a variety of industries, including automotive, telecommunications, and industrial systems where accurate current measurement is crucial.

Key Features

• High-Side Current Sensing: The LT6106IS5#TRMPBF is capable of sensing the current on the high side of the circuit, allowing for the detection of load current without interfering with the ground path of the load.
• Wide Input Voltage Range: It operates over a wide input voltage range of 4V to 60V, making it versatile for use in systems with varying supply voltages.
• Low Offset Voltage: The device features a low input offset voltage, which enhances the accuracy of current measurement across the entire operating range.
• High Accuracy: Precision current sensing is achieved with an accuracy level that makes the LT6106IS5#TRMPBF reliable for critical applications.
• Output Voltage: The output voltage is directly proportional to the current passing through the sensed resistor, providing an easy-to-read signal for monitoring or control purposes.

Applications

The LT6106IS5#TRMPBF is suitable for a wide range of applications, including:

• Power management systems
• Battery chargers
• Overcurrent protection
• Automotive and industrial control systems
• Portable devices

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LT6106IS5#TRMPBF is no exception. The device is designed to meet stringent industry standards, ensuring reliable performance even in harsh environments. With its robust design and Linear Technology's reputation for reliability, this current sense amplifier is an excellent choice for critical current sensing applications.
