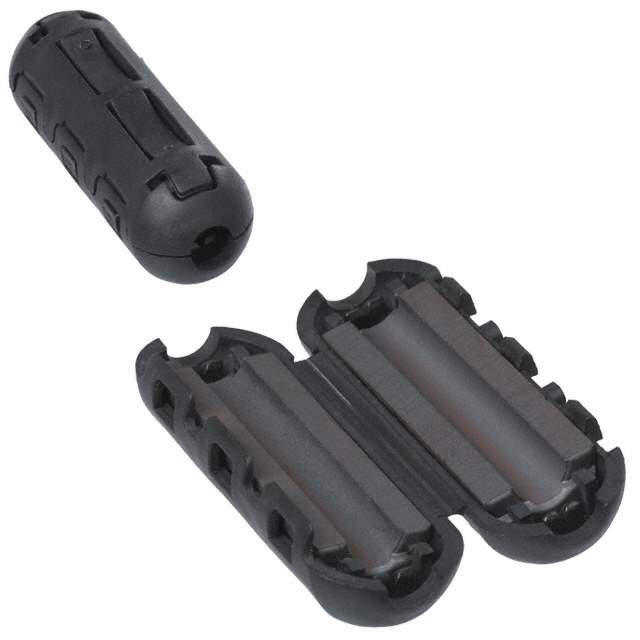

28A0434-0A2 Real Image
Same model may have multiple batches, images only for reference.

28A0434-0A2

Part No 28A0434-0A2
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 277 OHM HINGED / Hinged (Snap On) Free Hanging Ferrite Core 277Ohm @ 100MHz ID 0.214" Dia (5.44mm) OD 0.579" Dia (14.71mm) Length 1.694" (43.03mm)
Datasheet
28A0434-0A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Cable Ferrites
Manufacturer Laird-Signal Integrity Products
Packaging Tray
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 277Ohm @ 100MHz
Material 28
Inner Dimension 0.214" Dia (5.44mm)
Outer Dimension 0.579" Dia (14.71mm)
Mounting Free Hanging
Length 1.694" (43.03mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8547.10.8000
Other Part Number 240-2344,28A04340A2
Standard Package 88
Win Source Part Number 1328118-28A0434-0A2
Ultra Librarian 3D Model Ultra Librarian 28A0434-0A2 CAD Model

Description

The Laird-Signal Integrity Products 1328118-28A0434-0A2 is a round cable ferrite filter designed to reduce electromagnetic interference (EMI) in electronic devices.

  • Length: 1.694 inches (43.03mm)
  • Design: Hinged (Snap On)
  • Inner Dimension: 0.214 inches (5.44mm)
  • Outer Dimension: 0.579 inches (14.71mm)
  • Impedance: 277Ohm @ 100MHz
  • Material: 28
  • Mounting: Free Hanging
  • Packaging: Tray
  • Standard Package: 88
  • ROHS3 Compliant: Yes
  • REACH Unaffected: Yes
