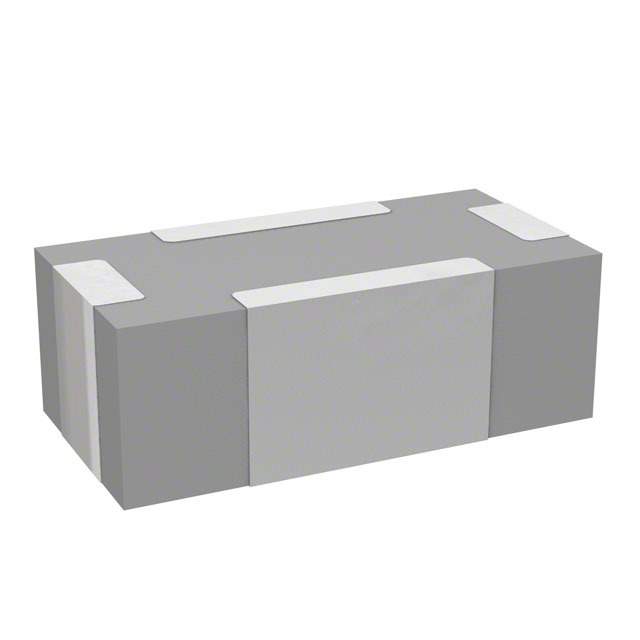

Same model may have multiple batches, images only for reference.

YFF15SC1H470MT000N

Name: YFF15SC1H470MT000N
Brand: TDK Corporation
SKU: 1329097
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	YFF15SC1H470MT000N
Manufacturer	TDK Corporation
Catalog	Feed Through Capacitors
Description	CAP FEEDTHRU 47PF 20% 50V 0402 / 47 pF Feed Through Capacitor 50V 1 A 300mOhm 0402 (1005 Metric), 4 PC Pad
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Feed Through Capacitors
Manufacturer	TDK Corporation
Packaging	Reel - TR
Capacitance	47 pF
Tolerance	±20%
Voltage - Rated	50V
Current	1 A
DC Resistance (DCR) (Max)	300mOhm
Temperature Range - Operating	-55°C ~ 125°C
Insertion Loss	30dB @ 2GHz ~ 6GHz
Mounting	Surface Mount
Case / Package	0402 (1005 Metric), 4 PC Pad
Size / Dimension	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height (Max)	0.014" (0.35mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Other Part Number	445-16129-2,445-16129-6,YFF15SC1H470M,445-16129-1
Standard Package	10,000
Win Source Part Number	1329097-YFF15SC1H470MT000N
Ultra Librarian 3D Model	Ultra Librarian YFF15SC1H470MT000N CAD Model

Alternative Products

Description

The TDK Corporation YFF15SC1H470MT000N is a feed through capacitor designed for surface mount mounting.

Mounting Type: Surface Mount
Capacitance: 47 pF
Tolerance: ±20%
Voltage Rating: 50V
Current: 1A
Insertion Loss: 30dB @ 2GHz ~ 6GHz
Package: 0402
Size: 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height: 0.014" (0.35mm)
Temperature Range: -55°C to 125°C
ROHS3 Compliant: Yes
