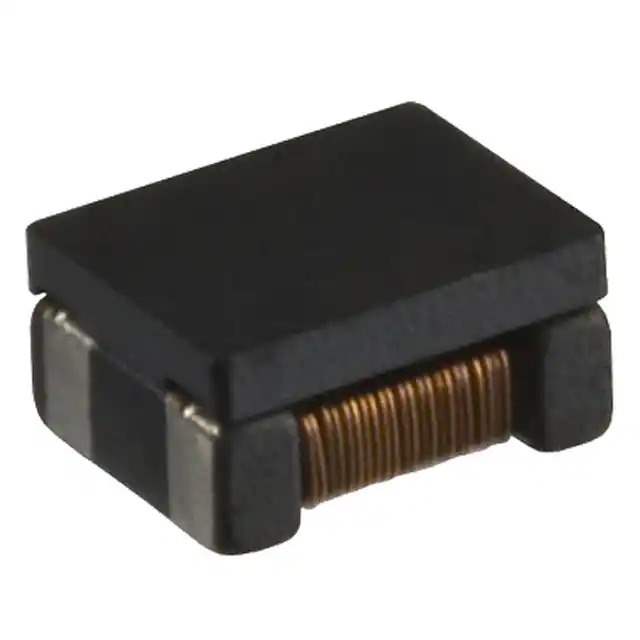

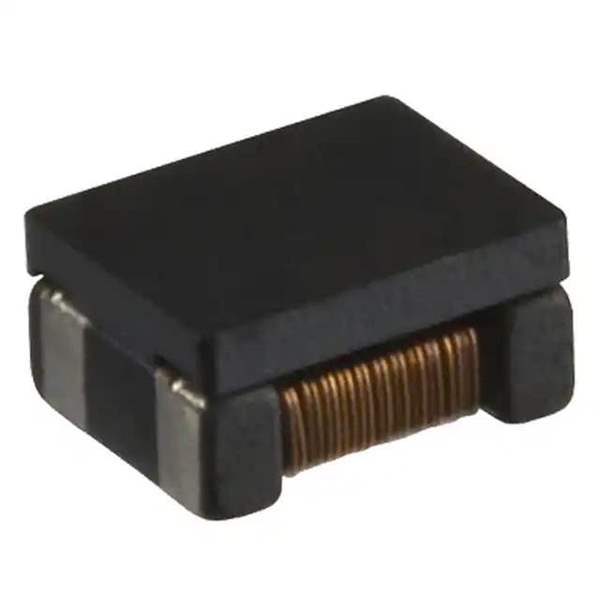

ACM2012-222-2P-T001 Real Image
Same model may have multiple batches, images only for reference.

ACM2012-222-2P-T001

Part No ACM2012-222-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 150MA 2LN 2.2KOHM SMD / 2 Line Common Mode Choke Surface Mount 2.2 kOhms @ 100 MHz 150mA DCR 2.5Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr TDK Corporation
Series ACM
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2.2 kOhms @ 100 MHz
Current Rating (Max) 150mA
DC Resistance (DCR) (Max) 2.5Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Ratings AEC-Q200
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.051" (1.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 859258-ACM2012-222-2P-T001
Ultra Librarian 3D Model Ultra Librarian ACM2012-222-2P-T001 CAD Model

Description

The ACM2012-222-2P-T001 is a common mode choke from the ACM series.

  • Application: Signal Line Filtering
  • Voltage Rating: 50V
  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Mounting Type: Surface Mount
  • Lines: Two
  • Impedance: 2.2 kOhms @ 100 MHz
  • Maximum DC Resistance (DCR): 2.5 Ohm
  • Temperature Range: -40°C to 105°C
  • Manufacturer: TDK Corporation
