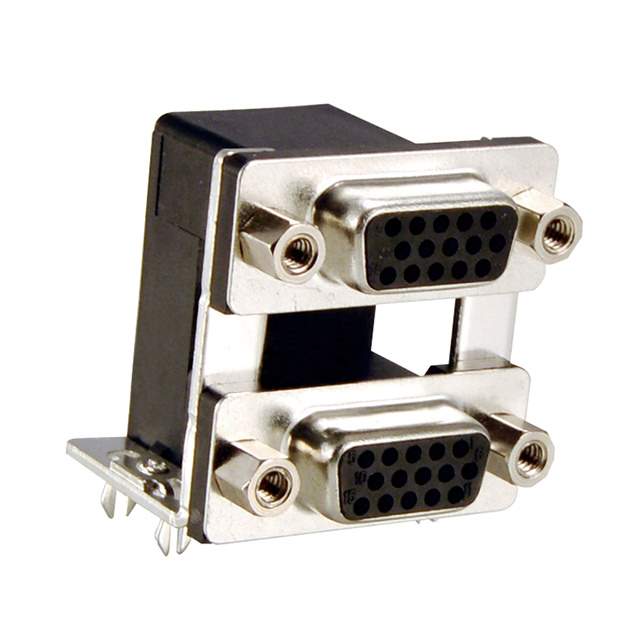

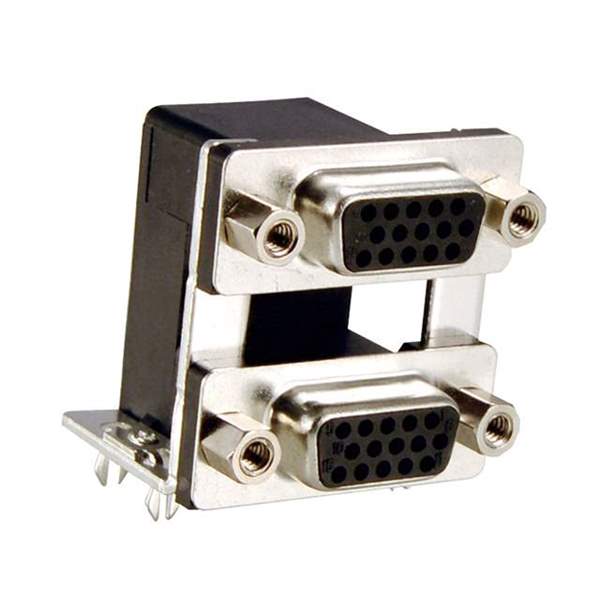

Same model may have multiple batches, images only for reference.

K42X-E15S/S-A4NJ

Get a Quote

Part No	K42X-E15S/S-A4NJ
Manufacturer	Kycon, Inc.
Catalog	D - Sub Connectors
Description	CONN D-SUB HD RCPT 15P R/A SLDR / 15, 15 Position D-Sub, High Density - Stacked Receptacle, Female Sockets Connector
Datasheet	K42X-E15S/S-A4NJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	Kycon, Inc.
Series	K42X
Package	Tray
Connector Style	D-Sub, High Density - Stacked
Connector Type	Receptacle, Female Sockets
Number of Positions	15, 15
Number of Rows	3, 3
Mounting Type	Through Hole, Right Angle
Shell Size, Connector Layout	1 (DE, E); 1 (DE, E) High Density
Contact Type	Signal
Flange Feature	Mating Side, Female Screwlock (4-40)
Termination	Solder
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1.2A
Backset Spacing	0.350" (8.89mm)
Features	Board Lock, Mounting Brackets
Voltage Rating	30V
Color	Black
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Contact Material	Phosphor Bronze
Temperature Range - Operating	-55°C ~ 105°C
Base Product Number	K42X-E15
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2092-K42X-E15S/S-A4NJ
Standard Package	27
Win Source Part Number	1207692-K42X-E15S/S-A4NJ
Ultra Librarian 3D Model	Ultra Librarian K42X-E15S/S-A4NJ CAD Model

Description

The 1207692-K42X-E15S/S-A4NJ is a D-sub connector that is designed for use in connectors, interconnects. 1207692-K42X-E15S/S-A4NJ

Connector Type: Receptacle, Female Sockets
Contact Type: Signal
Shell Size, Connector Layout: 1 (DE, E); 1 (DE, E) High Density
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 1.2A
Voltage Rating: 30V
Temperature Range: -55°C to 105°C
Applications: D-sub connectors, interconnects, and electronic devices
