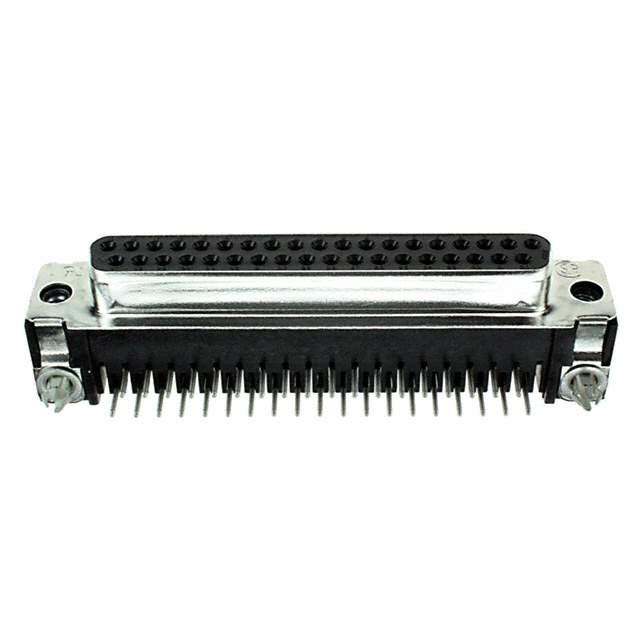

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Ground Strap
Voltage Rating 125V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747847
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A32129,57478474,2266-5747847-4
Standard Package 52
Win Source Part Number 988343-5747847-4
Ultra Librarian 3D Model Ultra Librarian 5747847-4 CAD Model

Description

This D-Sub Connector is a receptacle with female sockets and has a total of 37 positions.

  • Connector Type: D-Sub
  • Positions: 37
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting Type: Through Hole, Right Angle
  • Features: Board Lock and Ground Strap
  • Flange Feature: Housing/Shell (4-40)
  • Shell Material: Steel
  • Shell Plating: Tin Plated
  • Dielectric Material: Thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
  • Backset Spacing: 0.318" (8.08mm)
