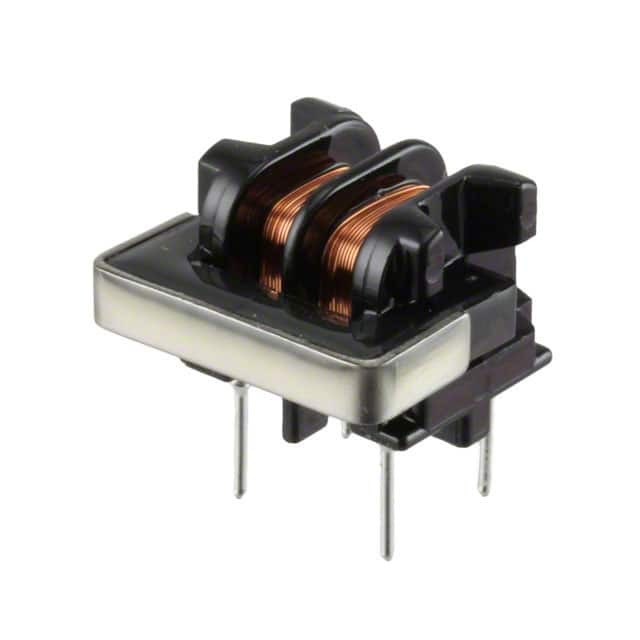

SU9H-R03090 Kemet
Same model may have multiple batches, images only for reference.

SU9H-R03090

Part No SU9H-R03090
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9 mH @ 1 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 3Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9H
Other Names UALSU9HR030900,399-10709
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276478-SU9H-R03090
Ultra Librarian 3D Model Ultra Librarian SU9H-R03090 CAD Model

Description

The Kemet 1276478-SU9H-R03090 is a common mode choke filter with a current rating of 300mA.

  • Current Rating: 300mA
  • Series: SU series
  • Standard Package: 1,000
  • Power Line Filter: Yes
  • Voltage Rating: 250V
  • Inductance: 9 mH @ 1 kHz
  • Package: Vertical, 4 PC pin through hole
  • Temperature Range: -25°C to 120°C
  • ECCN: EAR99
  • REACH: Unaffected
