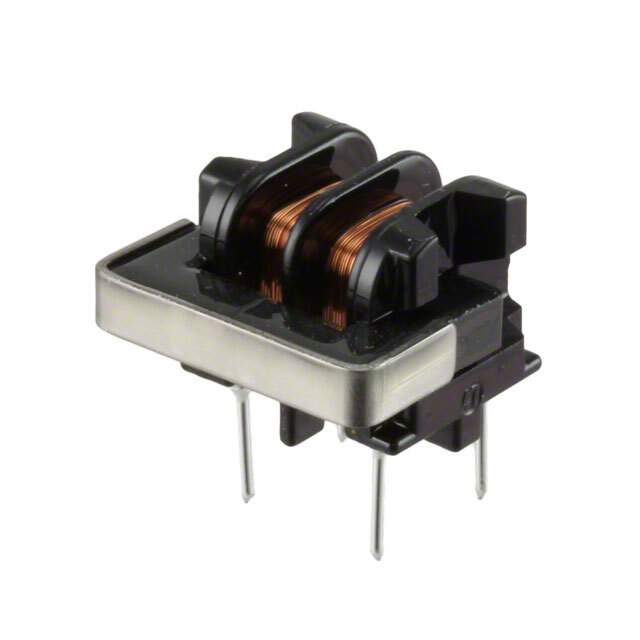

SU9H-02080 Real Image
Same model may have multiple batches, images only for reference.

SU9H-02080

Part No SU9H-02080
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8 mH @ 1 kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 6Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9H
Other Names 399-10703,UALSU9H0208000
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276479-SU9H-02080
Ultra Librarian 3D Model Ultra Librarian SU9H-02080 CAD Model

Description

The SU series common mode chokes from KEMET are designed for power line filtering applications.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 200mA
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Inductance: 8mH @ 1kHz
  • DC Resistance: 6Ohm
  • Temperature Range: -25°C to 120°C
  • Height: 0.492" (12.50mm)
  • Dimension: 0.669" L x 0.610" W (17.00mm x 15.50mm)
  • ECCN: EAR99 compliant
