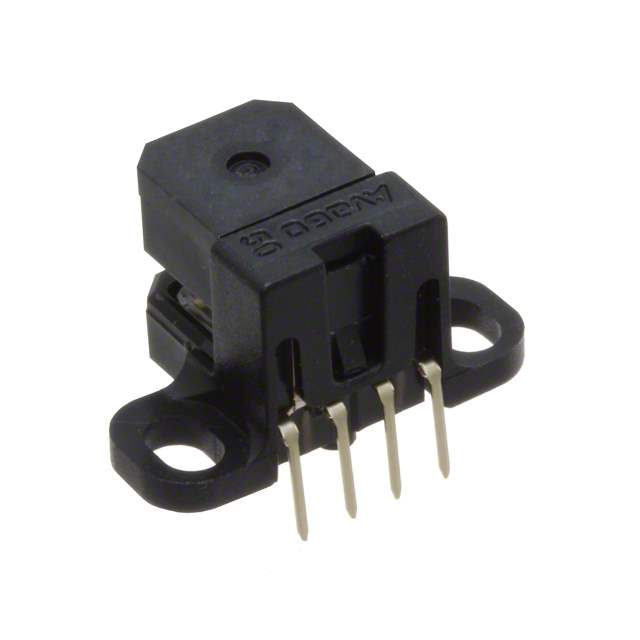

Part No HEDS-9731#A50
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER SMALL 2CH 500CPR STD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Supply Voltage - Operating 3.3VDC
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Right Angle
Termination Style Terminal Pins
Win Source Part Number 144706-HEDS-9731#A50
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian HEDS-9731#A50 CAD Model

Description

The Broadcom Limited 144706-HEDS-9731#A50 is an optical encoder sensor.

  • Encoder Type: Optical
  • Termination Style: Terminal pins
  • Orientation: Right angle
  • Output Type: Quadrature (incremental)
  • Codewheel: Not included
  • Application: Transducers
  • Package Quantity: 50
