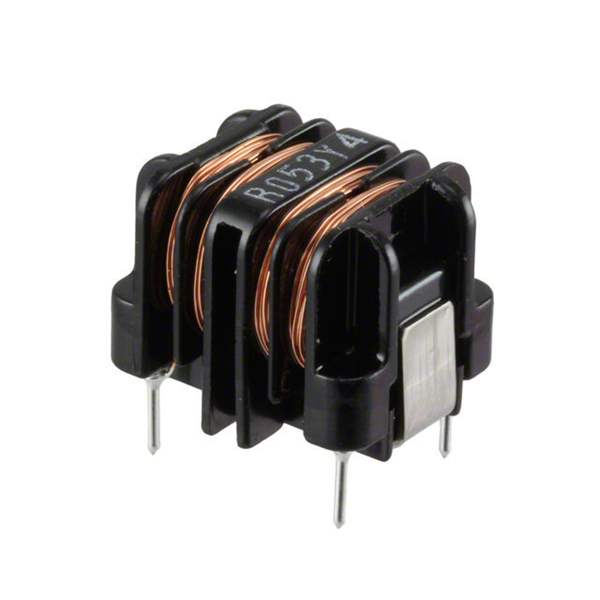

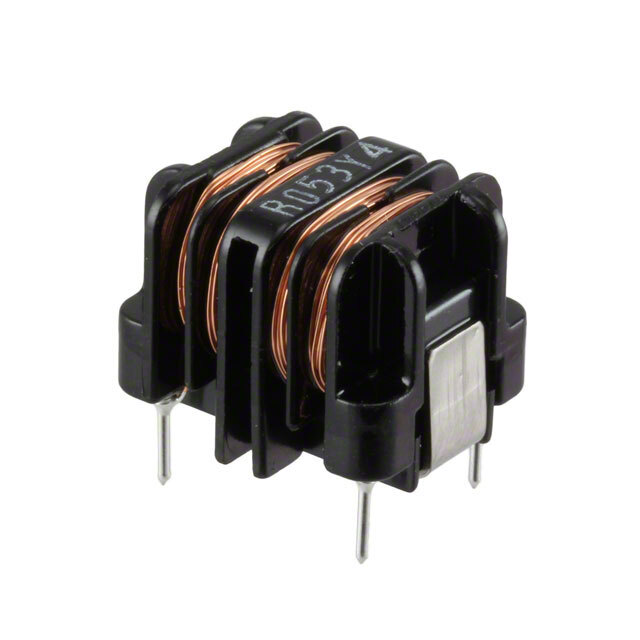

SU10VFC-R05140 KEMET – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SU10VFC-R05140

Part No SU10VFC-R05140
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 14MH 500MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category FiltersCommon Mode Chokes
Manufacturer Kemet
Series SU
Packaging Bulk
Part Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 14 mH @ 1 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1.6Ohm
Voltage Rating - AC 250V
Operating Temperature -25°C ~ 120°C
Mounting Type Through Hole
Size / Dimension 0.709" L x 0.610" W (18.00mm x 15.50mm)
Height (Max) 0.591" (15.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU10VF
Ultra Librarian 3D Model Ultra Librarian SU10VFC-R05140 CAD Model
