Same model may have multiple batches, images only for reference.

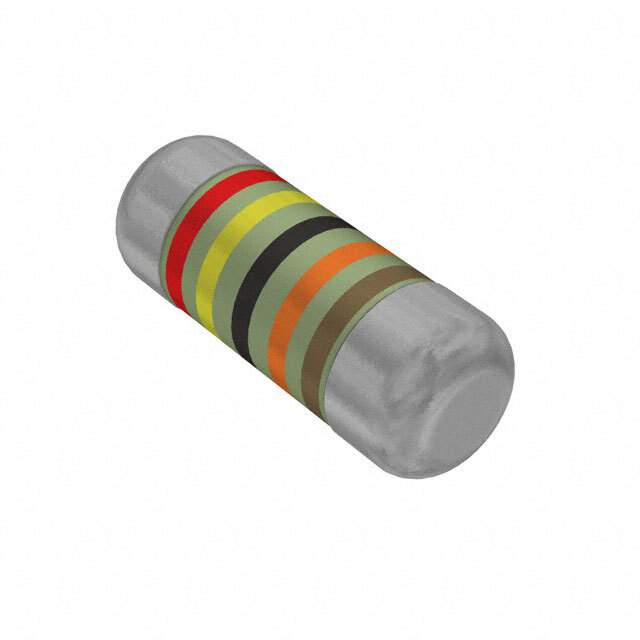

SMM02040C2403FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C2403FB300

Part No SMM02040C2403FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 240K OHM 1% 1/4W MELF 0204 / 240 kOhms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02040C2403FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0204
Package Tape & Reel
Resistance 240 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case MELF, 0204
Supplier Device Package Mini MELF
Ratings AEC-Q200
Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names 749-1964-6,SMM02040C2403FB300-ND,749-1964-1,749-1964-2
Standard Package 3,000
Win Source Part Number 1140929-SMM02040C2403FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C2403FB300 CAD Model

Description

This electronic component is a Vishay Beyschlag/Draloric/BC Components manufactured resistor with a Win Source Part Number of 1140929-SMM02040C2403FB300. It is categorized under Resistors>Chip Resistor - Surface Mount and is a part of the SMM0204 series. It features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding and has a Tape & Reel package. The tolerance is ±1% and the temperature coefficient is ±50ppm/°C. It has a power rating of 0.25W, 1/4W and a resistance of 240 kOhms. It is packaged in MELF, 0204 and has a Mini MELF supplier device package. It has an operating temperature range of -55°C to 125°C.
