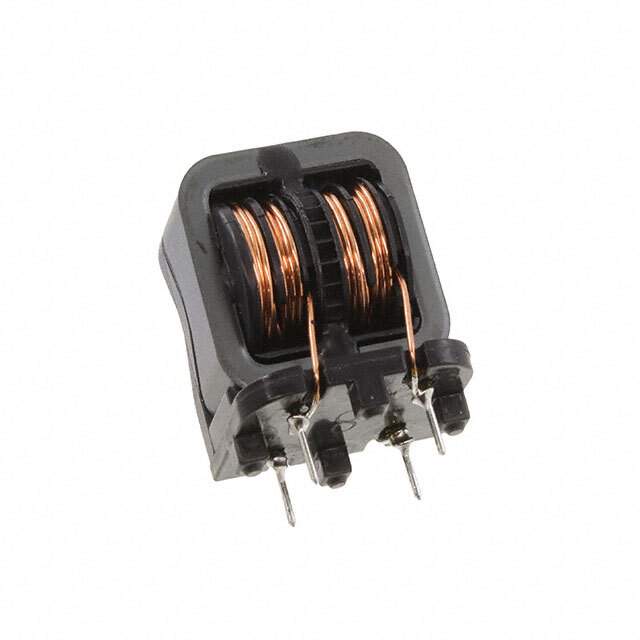

SSRH24NVS-40059 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NVS-40059

Part No SSRH24NVS-40059
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 5.9 mH @ 10 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 55mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names UALS24VS400590,399-19080
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276576-SSRH24NVS-40059
Ultra Librarian 3D Model Ultra Librarian SSRH24NVS-40059 CAD Model

Description

The KEMET SSR series common mode choke is a power line filter with a voltage rating of 250V AC and a maximum current rating of 4A.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 4A
  • Package Type: bulk
  • Height: 1.220 inches (31.00mm)
  • Lines: two
  • Inductance @ frequency: 5.9mH @ 10kHz
  • DC resistance (DCR): 55mOhm
  • Mounting Type: through hole
  • Package/Case: vertical with 4 PC pins
  • Temperature Range: from -25°C to 120°C
