Same model may have multiple batches, images only for reference.

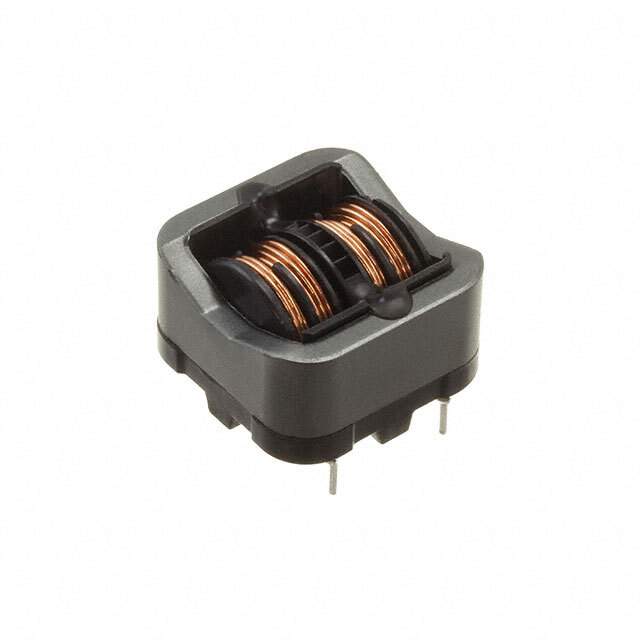

SSRH24NH-25205 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NH-25205

Part No SSRH24NH-25205
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 20.5 mH @ 10 kHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 145mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names 399-19050,UALS24H2520500
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276539-SSRH24NH-25205
Ultra Librarian 3D Model Ultra Librarian SSRH24NH-25205 CAD Model

Description

The KEMET SSRH Series Common Mode Choke is a power line filter designed to be used in electronic devices and equipment.

  • Series: SSRH
  • Manufacturer: KEMET
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 2.5A
  • Package: Bulk
  • Mounting Type: Vertical, 4 PC pin
  • Lines: 2
  • Inductance @ Frequency: 20.5 mH @ 10 kHz
  • DC Resistance (DCR) (Max): 145mOhm
  • Temperature Range: -25°C to 120°C
  • Dimensions: 1.004” L x 1.004” W (25.50mm x 25.50mm)
