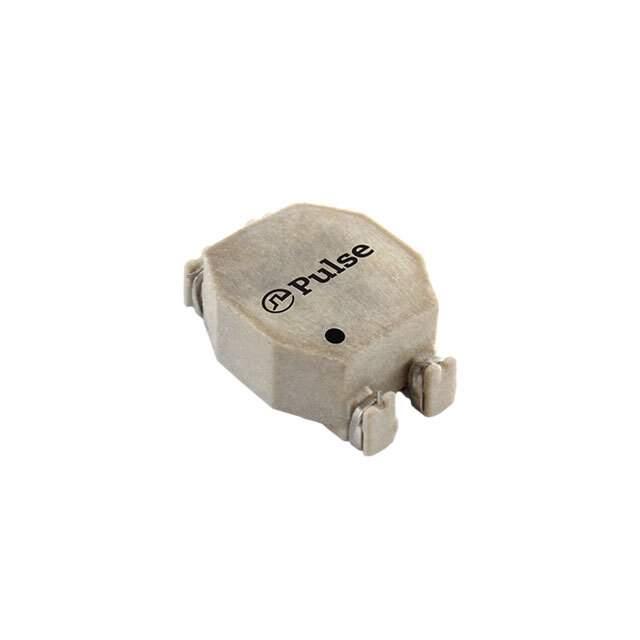

TM8116NL Real Image
Same model may have multiple batches, images only for reference.

TM8116NL

Part No TM8116NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 470UH 700MA 2LN 800 OHM SMD / 470 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 800 Ohms @ 100 MHz 700mA DCR 300mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Pulse Electronics Network
Package Tube
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 800 Ohms @ 100 MHz
Inductance @ Frequency 470 µH @ 100 kHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 300mOhm
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.260" L x 0.248" W (6.60mm x 6.30mm)
Height (Max) 0.161" (4.10mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names -TM8116NL,553-3325-5,553-3325
Standard Package 75
Win Source Part Number 1100255-TM8116NL
Ultra Librarian 3D Model Ultra Librarian TM8116NL CAD Model

Description

The TM8116NL electronic component is a common mode choke filter manufactured by Pulse Electronics Network.

  • Maximum Current Rating: 700mA
  • Package: 75
  • Impedance: 800 Ohms @ 100 MHz
  • Inductance: 470 µH @ 100 kHz
  • Mounting Style: SMD (SMT)
  • Temperature Range: -40°C ~ 85°C
  • Win Source Part Number: 1100255
