Same model may have multiple batches, images only for reference.

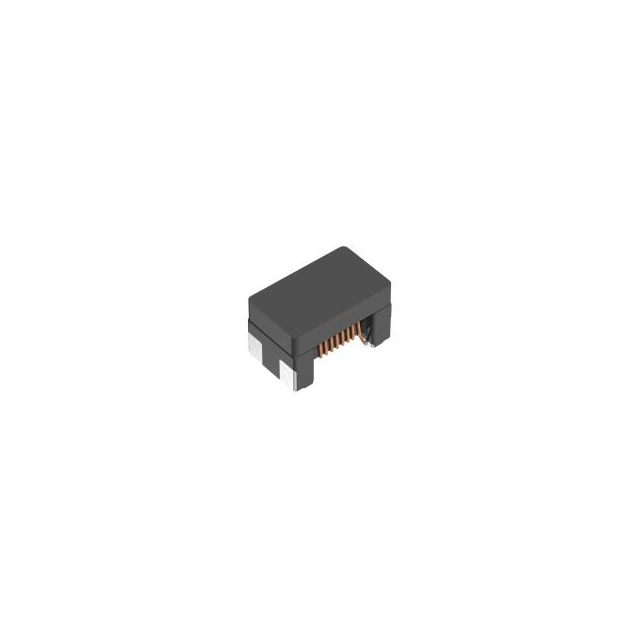

ACM2012H-900-2P-T03 Real Image
Same model may have multiple batches, images only for reference.

ACM2012H-900-2P-T03

Part No ACM2012H-900-2P-T03
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 90 OHM SMD AECQ200
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 13 Weeks
Features 2 Line Common Mode Choke Surface Mount 300mA DCR 300mOhm
Manufacturer TDK Corporation
Series ACM-H
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-ACM2012H-900-2P-T03DKR, 445-ACM2012H-900-2P-T03TR, 445-ACM2012H-900-2P-T03CT
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 859260-ACM2012H-900-2P-T03
Ultra Librarian 3D Model Ultra Librarian ACM2012H-900-2P-T03 CAD Model

Description

The TDK Corporation ACM2012H-900-2P-T03 is a 2 line common mode choke in the filters category.

  • Supply and Demand Status: Limited
  • Package: Surface Mount
  • Configuration: Horizontal, 4 PC pad
  • Rated Current: 300 mA
  • DC Resistance: 300 mOhm
