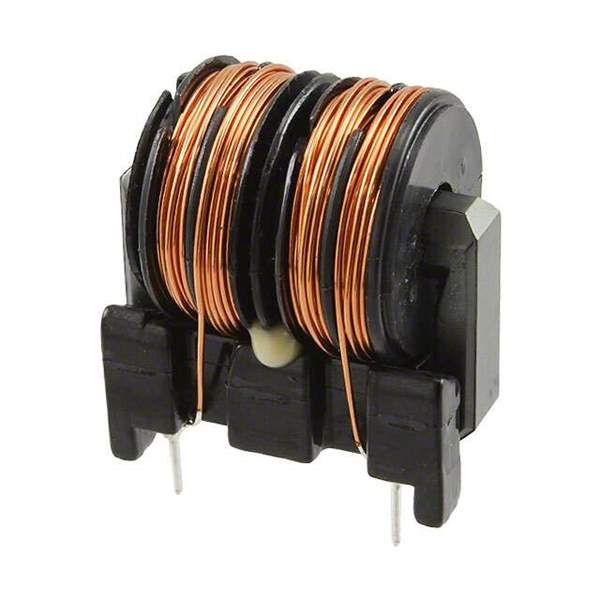

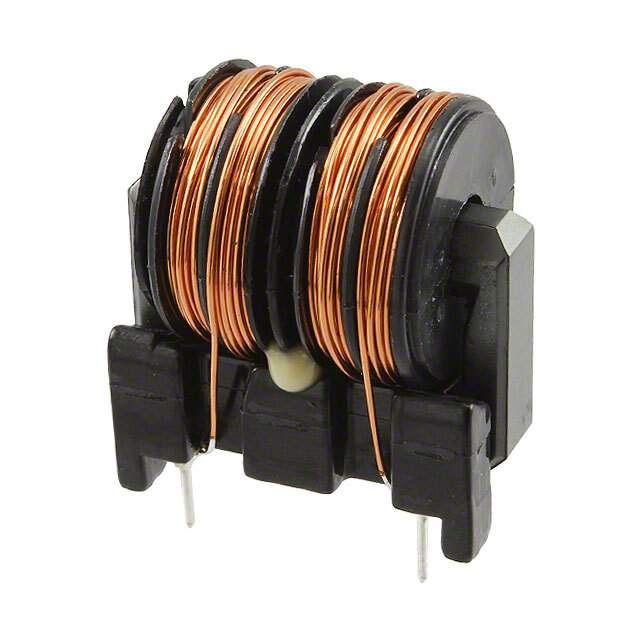

SS30V-R350047 Real Image
Same model may have multiple batches, images only for reference.

SS30V-R350047

Part No SS30V-R350047
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 4.7MH 3.5A 2LN TH / 4.7 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 3.5A DCR 100mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4.7 mH @ 1 kHz
Current Rating (Max) 3.5A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names UAL30VR3500470,399-10603
Standard Package 200
Win Source Part Number 1035913-SS30V-R350047
Ultra Librarian 3D Model Ultra Librarian SS30V-R350047 CAD Model

Description

The KEMET SS30V-R350047 is a common mode choke filter from the SS series.

  • Series: SS
  • Voltage Rating (AC): 250V
  • Current Rating (max): 3.5A
  • Inductance @ Frequency: 4.7 mH @ 1 kHz
  • DCR (max): 100mOhm
  • Package: Vertical, 4 PC Pin
  • Height: 1.339 inches
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
