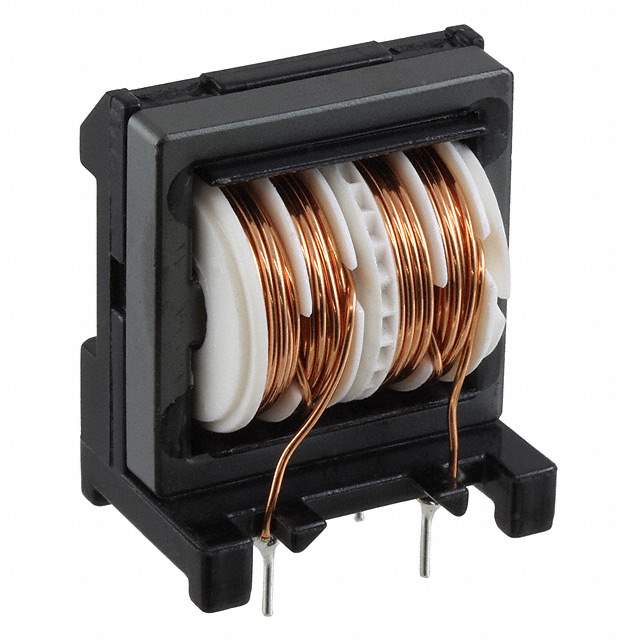

SS28V-K25075-CH Real Image
Same model may have multiple batches, images only for reference.

SS28V-K25075-CH

Part No SS28V-K25075-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 7.5 mH @ 1 kHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 160mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.181" L x 0.866" W (30.00mm x 22.00mm)
Height (Max) 1.398" (35.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS28V
Other Names 399-10761,UAL28VK25075CH
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276749-SS28V-K25075-CH
Ultra Librarian 3D Model Ultra Librarian SS28V-K25075-CH CAD Model

Description

The SS28V-K25075-CH is a common mode choke from Kemet.

  • Filter Type: power line
  • Mounting Style: through-hole
  • Maximum Current Rating: 2.5A
  • Voltage Rating: 250V AC
  • DC Resistance: 160mOhm
  • Inductance: 7.5mH @ 1 kHz frequency
  • Temperature Range: -25°C to 120°C
  • Standard Package: 300
  • Height: 35.50mm
  • Package Dimension: 30.00mm x 22.00mm
