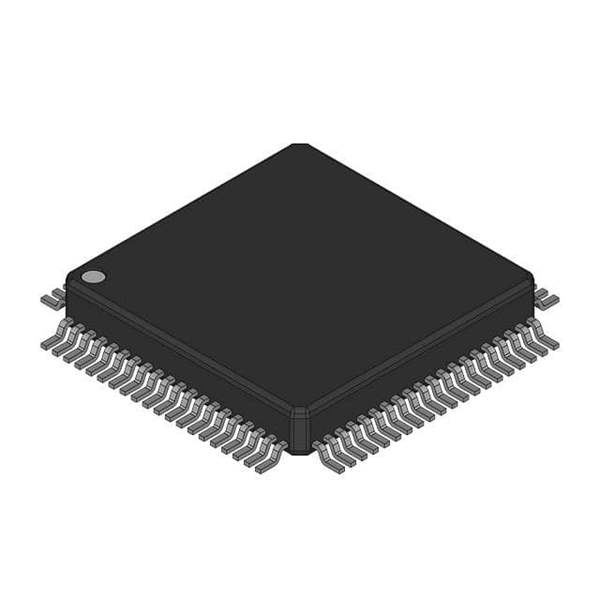

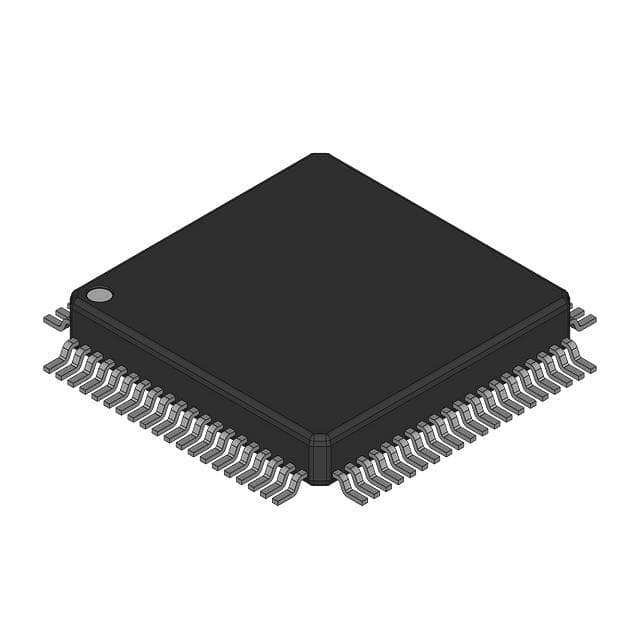

S912XDG128F2VAA
Same model may have multiple batches, images only for reference.

S912XDG128F2VAA

Part No S912XDG128F2VAA
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 80QFP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features HCS12X series Microcontroller IC 16-Bit 80MHz 128KB (128K x 8) FLASH 80-QFP (14x14)
Manufacturer Freescale Semiconductor - NXP
Series HCS12X
Package Bulk
Core Processor HCS12X
Core Size 16-Bit
Speed 80MHz
Connectivity CANbus, I2C, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 59
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
Supply Voltage 2.35V ~ 5.5V
Data Converters A/D 8x10b, 16x10b
Oscillator Type External
Operating Temperature Range -40°C ~ 105°C (TA)
Mounting Surface Mount
Package 80-QFP
Case / Package 80-QFP (14x14)
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 893286-S912XDG128F2VAA
Ultra Librarian 3D Model Ultra Librarian S912XDG128F2VAA CAD Model

Description

The Freescale Semiconductor - NXP 893286-S912XDG128F2VAA is a HCS12X series microcontroller IC with 16-bit core processor that operates @ 80MHz.

  • Series: HCS12X
  • Core Processor: 16-bit
  • Clock Speed: 80MHz
  • Program Memory Size: 128KB (128K x 8) FLASH
  • EEPROM Size: 2K x 8
  • Package: 80-QFP
  • Operating Temperature: -40°C to 105°C (TA)
