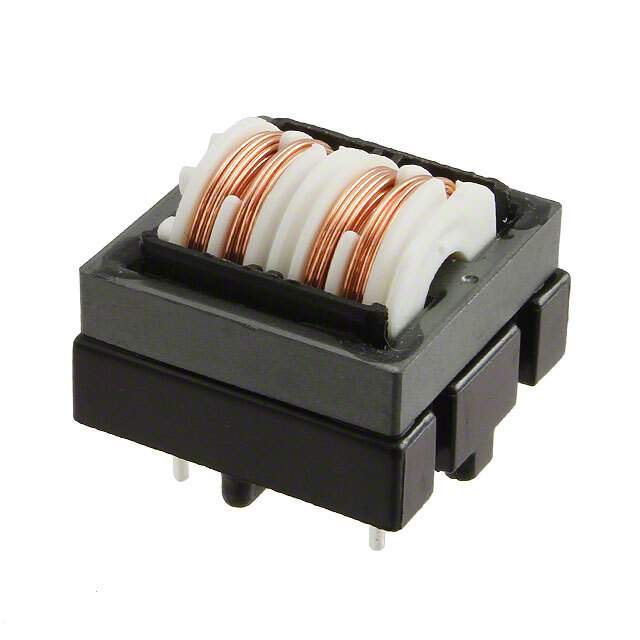

SS20H-10080 Real Image
Same model may have multiple batches, images only for reference.

SS20H-10080

Part No SS20H-10080
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 420mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.866" W (22.00mm x 22.00mm)
Height (Max) 0.728" (18.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS20H
Other Names 399-10678,UAL20H10080000
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276744-SS20H-10080
Ultra Librarian 3D Model Ultra Librarian SS20H-10080 CAD Model

Description

The SS20H-10080 is a power line filter component from KEMET.

  • Designed for: Use in filters
  • Maximum Current Rating: 1A
  • Series: SS series filter
  • Packaged: in bulk
  • Voltage Rating: 250V AC
  • DC Resistance (DCR): 420mOhm
  • Height: 0.728" (18.50mm)
  • Package or Case: Vertical, 4 PC Pin
  • Filter Type: Power line
  • Lines: Two lines
  • Inductance: 8 mH @ 1 kHz
  • Temperature Range: -25°C ~ 120°C
  • RoHS Compliant: Yes
  • REACH: Unaffected
