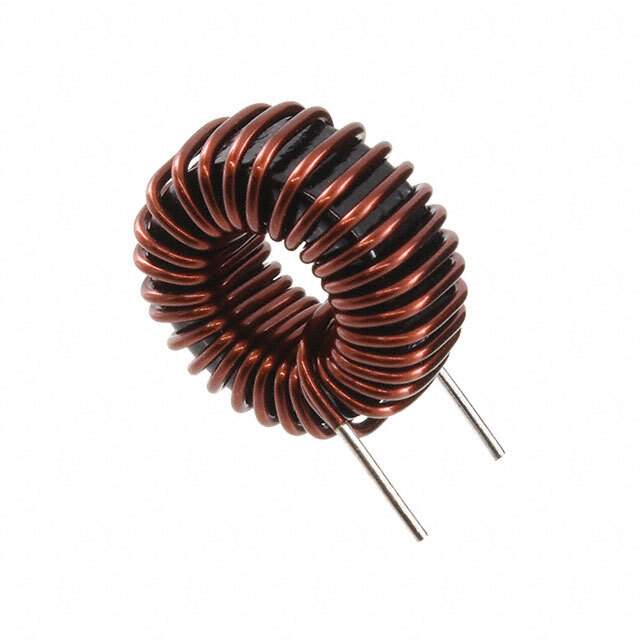

SNT-S20T Real Image
Same model may have multiple batches, images only for reference.

SNT-S20T

Part No SNT-S20T
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-S20T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 6 µH @ 100 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 35Ohm
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.197" W (9.50mm x 5.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-S
Other Names 399-SNT-S20TTR,UDLSNT0S20T000
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276804-SNT-S20T
Ultra Librarian 3D Model Ultra Librarian SNT-S20T CAD Model

Description

The KEMET SNT-S20T is a common mode choke filter with a signal line filter type.

  • Filter Type: Signal line
  • Current Rating (Max): 1.5A
  • Standard Package: 1,000
  • Lines: Two lines
  • Inductance: 6 µH @ 100 kHz
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 2 PC pin
  • Operating Temperature: -20°C to 60°C
