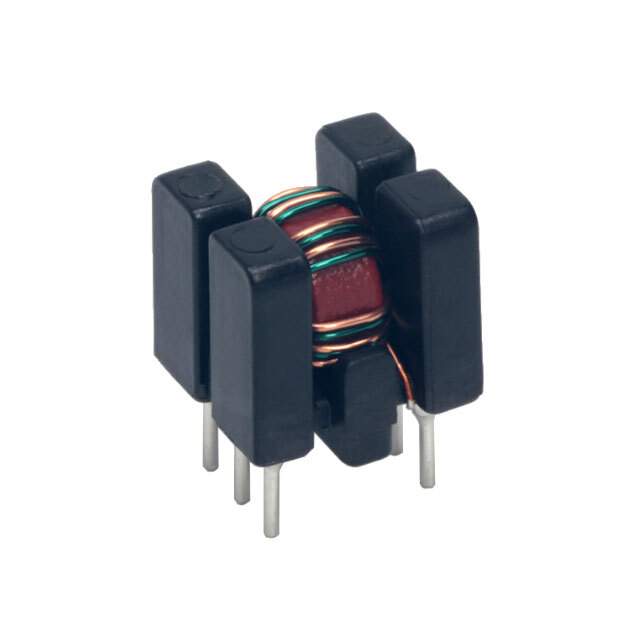

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 15 µH @ 100 kHz
Current Rating (Max) 2.1A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Other Names UDLSH003030000,399-19663
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276856-SH-303
Ultra Librarian 3D Model Ultra Librarian SH-303 CAD Model

Description

The Kemet SH series common mode choke is a power line filter type with a package size of 4 PC pin vertical.

  • Manufacturer:KEMET
  • Series: SH
  • Filter Type: Power Line
  • Package Size: 4 PC pin vertical
  • Voltage Rating (DC): 50V
  • Current Rating: 2.1A
  • Standard Package: 1000
  • Height (Max): 12.00mm
  • Lines: 2
  • Inductance: 15 µH @ 100 kHz
  • DC Resistance (DCR): 10 mOhm (max)
  • Operating Temperature Range: -25°C to 80°C
  • ECCN: Approved
  • REACH Status: REACH unaffected
