Same model may have multiple batches, images only for reference.

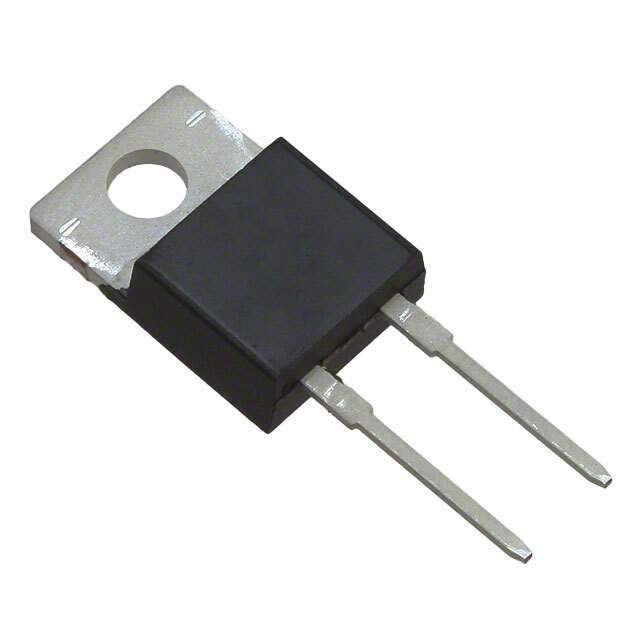

E4D20120A Real Image
Same model may have multiple batches, images only for reference.

E4D20120A

Part No E4D20120A
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description E SERIES, 20 AMP, 1200V G4 SCHOT
Datasheet
E4D20120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 12 Weeks
Features Diode Silicon Carbide Schottky 1200 V 54.5A (DC) Through Hole TO-220-2
Manufacturer Cree/Wolfspeed
Series E-Series, Automotive
Package Tube
Speed No Recovery Time > 500mA (Io)
Mounting Through Hole
Package TO-220-2
Case / Package TO-220-2
Family Name E4D20120
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869990-E4D20120A
Ultra Librarian 3D Model Ultra Librarian E4D20120A CAD Model

Description

The E4D20120A is an electronic component manufactured by Cree/Wolfspeed.

  • Series: E-Series, Automotive
  • Type: Diode Silicon Carbide Schottky 1200 V 54.5A (DC)
  • Package: Through Hole TO-220-2
  • Recovery Time: No recovery time > 500mA (Io)
  • Mounting Type: Through Hole
