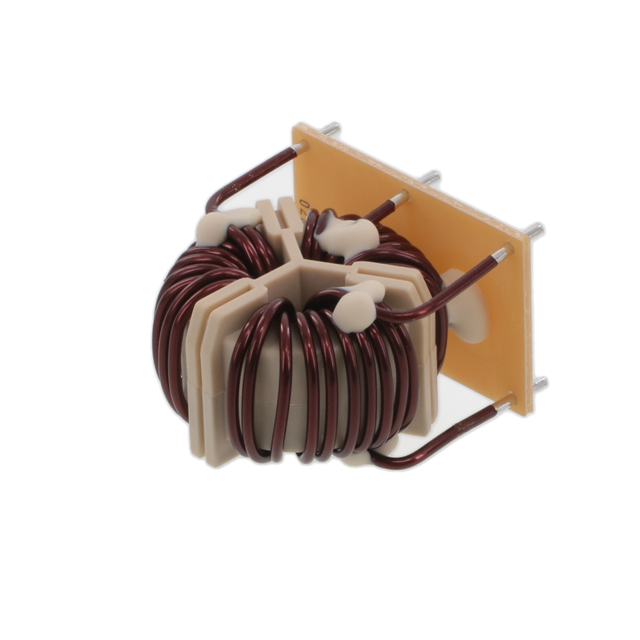

SCF31B-180-S1R7A013J Real Image
Same model may have multiple batches, images only for reference.

SCF31B-180-S1R7A013J

Part No SCF31B-180-S1R7A013J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 1.5 mH @ 100 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 6.5mOhm
Voltage Rating - DC 500V
Voltage Rating - AC 500V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.831" L x 1.260" W (46.50mm x 32.00mm)
Height (Max) 1.732" (44.00mm)
Package / Case Vertical, 6 PC Pin
Base Product Number SCF31B
Other Names UALF31BS013J00,399-SCF31B-180-S1R7A013J
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276909-SCF31B-180-S1R7A013J
Ultra Librarian 3D Model Ultra Librarian SCF31B-180-S1R7A013J CAD Model

Description

The KEMET SCF31B-180-S1R7A013J is a high-quality common mode choke that is designed to provide reliable performance in electronic circuits.

  • Voltage Rating: AC/DC 500V
  • Current Rating: 18A
  • Height: 44.00mm
  • Mounting: Through-hole
  • Temperature Range: 25°C to 120°C
  • Compliance: RoHS
