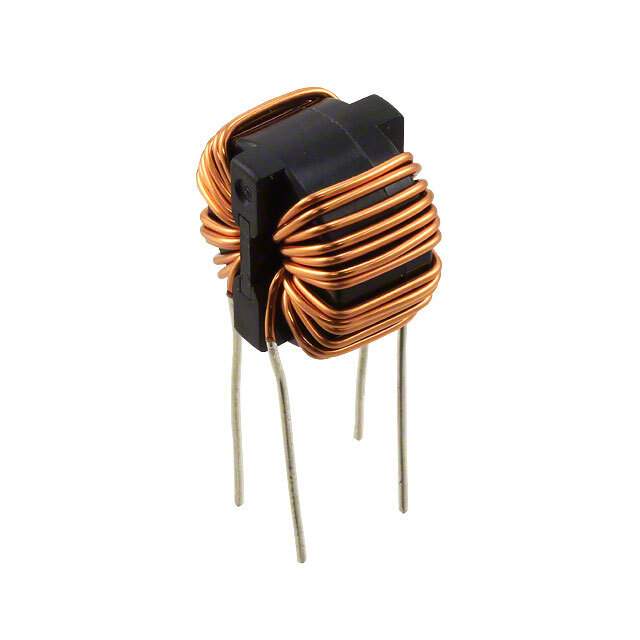

Same model may have multiple batches, images only for reference.

SCF-05-350

Name: SCF-05-350
Brand: Kemet
SKU: 1276973
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SCF-05-350
Manufacturer	Kemet
Catalog	Common Mode Chokes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	KEMET
Series	SC
Package	Tray
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	3.5 mH @ 10 kHz
Current Rating (Max)	5A
DC Resistance (DCR) (Max)	35mOhm
Voltage Rating - DC	250V
Voltage Rating - AC	250V
Temperature Range - Operating	-25°C ~ 120°C
Mounting Type	Through Hole
Dimension	0.630" L x 0.472" W (16.00mm x 12.00mm)
Height (Max)	0.630" (16.00mm)
Package / Case	Vertical, No Base, 4 PC Pin
Base Product Number	SCF-05
Other Names	399-10778,UALSCF05350000
Standard Package	1,300
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.31.4065
Win Source Part Number	1276973-SCF-05-350
Ultra Librarian 3D Model	Ultra Librarian SCF-05-350 CAD Model

Description

The KEMET SCF-05-350 common mode choke is a power line filter with a voltage rating of 250V (AC/DC).

Current Rating: 5A
Inductance: 3.5 mH @ 10 kHz
DC Resistance (DCR): 35mOhm
Height: 0.630" (16.00mm)
Mounting Type: Through-hole
Package/Case: Vertical, no base, 4 PC pin
Suitable for: Power line filtering applications
Operating Temperature Range: -25°C to 120°C
Dimension: 0.630" L x 0.472" W (16.00mm x 12.00mm)
Packaging: Tray
