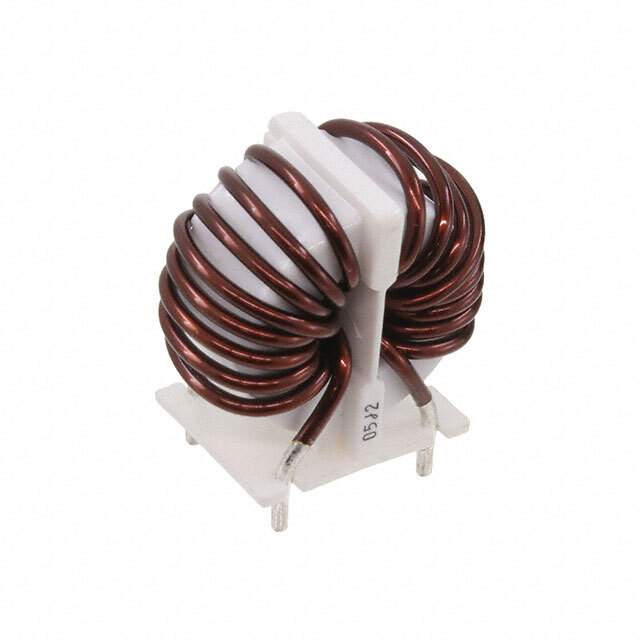

SC-20-05J-P Real Image
Same model may have multiple batches, images only for reference.

SC-20-05J-P

Part No SC-20-05J-P
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 487.5 µH @ 100 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 3.6mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.417" L x 0.984" W (36.00mm x 25.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-20
Other Names UALSC2005JP000,399-SC-20-05J-P
Standard Package 180
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276959-SC-20-05J-P
Ultra Librarian 3D Model Ultra Librarian SC-20-05J-P CAD Model

Description

The SC-20-05J-P is a common mode choke from KEMET's SC series.

  • Type: Power line filter
  • Ideal For: AC and DC applications
  • Current Rating: 20A (maximum)
  • Voltage Rating: 250V AC/DC
  • Mounting: Through-hole
  • Package: Vertical, 4 PC pin
  • Height: 35.00mm
  • Dimension: 36.00mm x 25.00mm
  • Temperature Range: 25°C to 120°C
  • Inductance: 487.5 µH @ 100 kHz
  • ECCN: EAR99
  • REACH: REACH unaffected
