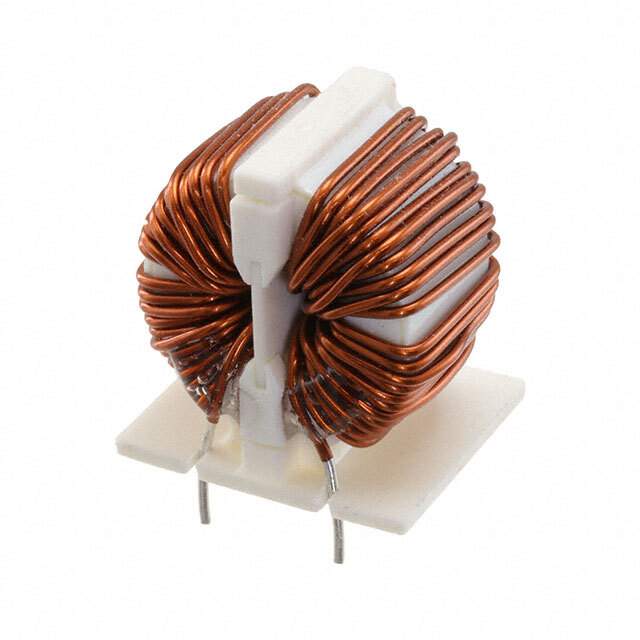

SC-04-20JN Real Image
Same model may have multiple batches, images only for reference.

SC-04-20JN

Part No SC-04-20JN
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 50mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-04
Other Names UALSC0420JN000,399-SC-04-20JN
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276987-SC-04-20JN
Ultra Librarian 3D Model Ultra Librarian SC-04-20JN CAD Model

Description

The Kemet SC-04 series common mode chokes are ideal for use in power line filters.

  • Inductance: 2 mH @ 100 kHz
  • Current Rating: 4 A
  • Package: Vertical, 4 PC pin
  • Package: Tray
  • Temperature Range: 25°C to 120°C
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
  • Other Names: UALSC0420JN000 and 399-SC-04-20JN
  • Base Product Number: SC-04
  • Agency Approval: Not approved by any agency
