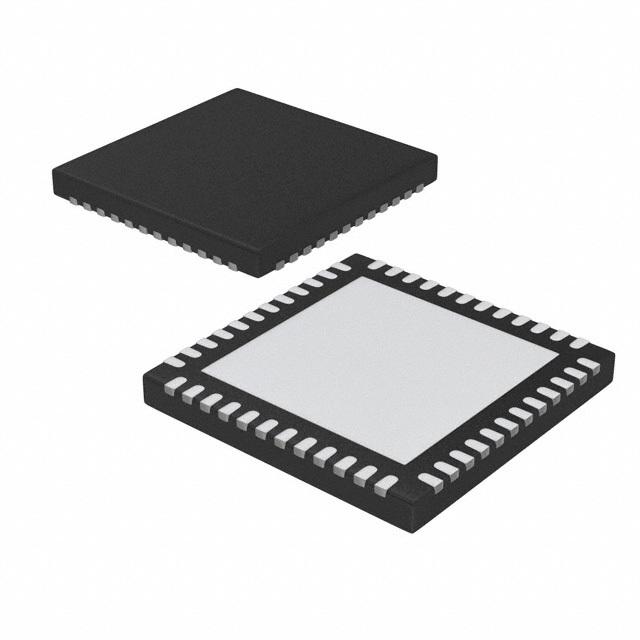

PTN3300AHF,518 - NXP's DisplayPort to VGA Adapter IC

The PTN3300AHF,518 by NXP Semiconductors is a cutting-edge integrated circuit designed to facilitate the conversion of DisplayPort signals into VGA (Video Graphics Array) output. This high-performance adapter IC is an ideal solution for enabling legacy monitors to interface with the latest DisplayPort-equipped sources, such as video cards, laptops, and desktop computers.

Key Features:

• High Compatibility: The PTN3300AHF,518 supports DisplayPort v1.1a and VESA DDM Standard, ensuring compatibility with a wide range of devices.
• Resolution Support: Capable of handling VGA output resolutions up to 1920x1200, this IC is perfect for high-definition video applications.
• Automatic Sink Detection: The device features automatic monitor detection via VGA hot plug detect (HPD), providing a seamless user experience.
• Low Power Consumption: Designed with power efficiency in mind, it includes a low-power standby mode to conserve energy when not in active use.
• Advanced ESD Protection: With integrated electrostatic discharge (ESD) protection, the PTN3300AHF,518 reduces the risk of damage to the device from static electricity.

Applications:

Thanks to its robust feature set, the PTN3300AHF,518 is suitable for a variety of applications, including:

• Video adapters from DisplayPort to VGA
• Docking stations with VGA output
• Desktops and notebooks with VGA connectivity
• Professional AV systems integration
• Legacy monitor support for new systems

Technical Specifications:

The PTN3300AHF,518 operates over a supply voltage range of 3.3V and is packaged in a compact HVQFN32 package, making it suitable for space-constrained applications. The device's industrial temperature range ensures reliable operation even in harsh environments.

Quality and Reliability:

NXP Semiconductors is known for its commitment to quality, and the PTN3300AHF,518 is no exception. It is manufactured to meet the highest industry standards, ensuring both reliability and performance for critical applications where signal integrity is paramount.

Whether upgrading an older VGA monitor or integrating VGA capabilities into modern DisplayPort-enabled devices, the PTN3300AHF,518 provides a reliable and efficient solution.
