Same model may have multiple batches, images only for reference.

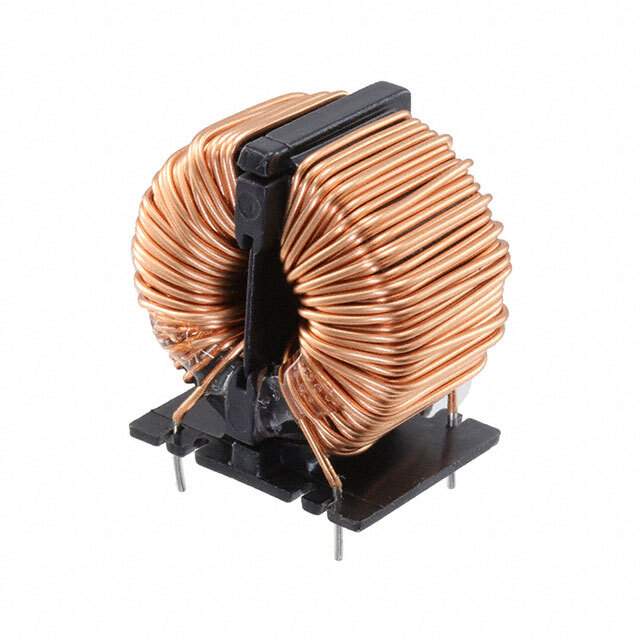

SC-04-200J Real Image
Same model may have multiple batches, images only for reference.

SC-04-200J

Part No SC-04-200J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20.3 mH @ 1 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 150mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.906" W (34.00mm x 23.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-04
Other Names UALSC04200J000,399-SC-04-200J
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276981-SC-04-200J
Ultra Librarian 3D Model Ultra Librarian SC-04-200J CAD Model

Description

The Kemet SC-04-200J is a common mode choke with a voltage rating of 250V and a current rating of 4A.

  • Filter Type: Power line
  • Lines: Two lines
  • Inductance @ Frequency: 20.3 mH @ 1 kHz
  • DC Resistance (DCR): 150mOhm
  • Dimensions: 1.339" L x 0.906" W (34.00mm x 23.00mm) and 1.299" (33.00mm) in height
  • Package: Through-hole and vertical, 4 PC Pin
  • Operating Temperature Range: 25°C to 120°C
  • Suitable for: Applications in power line filtering
