Same model may have multiple batches, images only for reference.

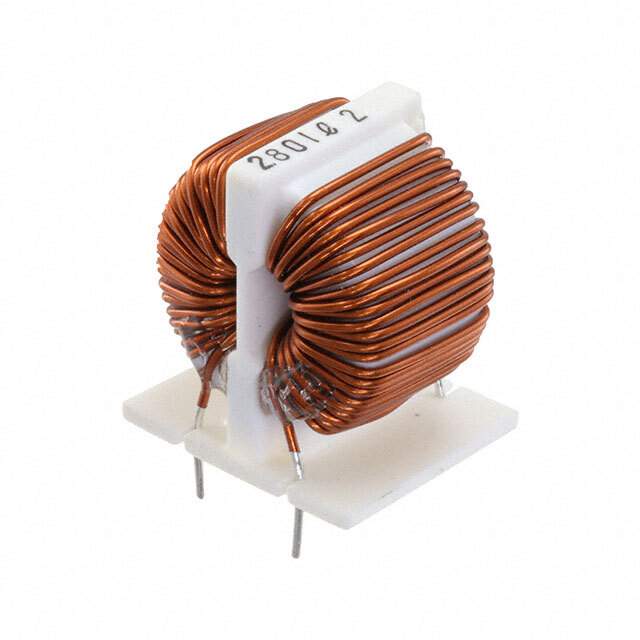

SC-03-85J Real Image
Same model may have multiple batches, images only for reference.

SC-03-85J

Part No SC-03-85J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8.5 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 110mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-03
Other Names 399-SC-03-85J,UALSC0385J0000
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276934-SC-03-85J
Ultra Librarian 3D Model Ultra Librarian SC-03-85J CAD Model

Description

The KEMET SC-03 series common mode choke is a high-quality power line filter designed to reduce common mode noise in electronic circuits.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 3A
  • Inductance: 8.5mH @ 10kHz
  • DC Resistance (DCR): 110mOhm
  • Filter Type: Power line
  • Height: 1.063 inches (27.00mm)
  • Mounting Type: Through-hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: 25°C to 120°C
  • Compliance: RoHS
