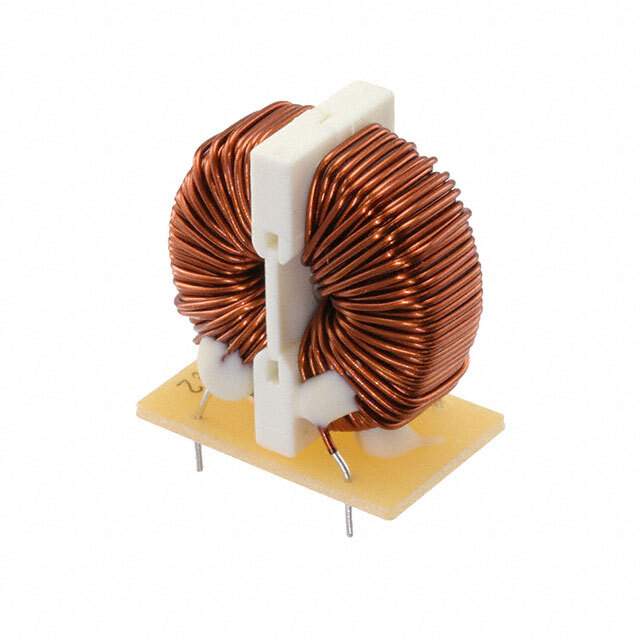

SC-02-E115J Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 11.5 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 155mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.606" W (25.00mm x 15.40mm)
Height (Max) 1.083" (27.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
Other Names 399-SC-02-E115J,UALSC02E115J00
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276996-SC-02-E115J
Ultra Librarian 3D Model Ultra Librarian SC-02-E115J CAD Model

Description

The KEMET SC-02-E115J common mode choke is a power line filter with a voltage rating of 250V (AC/DC).

  • Current Rating: 2A
  • Inductance: 11.5 mH @ 10 kHz
  • DC Resistance (DCR): 155mOhm
  • Height: 1.083" (27.50mm)
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Suitable for: Power line filtering applications
  • Operating Temperature Range: 25°C to 120°C
  • Dimension: 0.984" L x 0.606" W (25.00mm x 15.40mm)
  • Packaging: Tray
