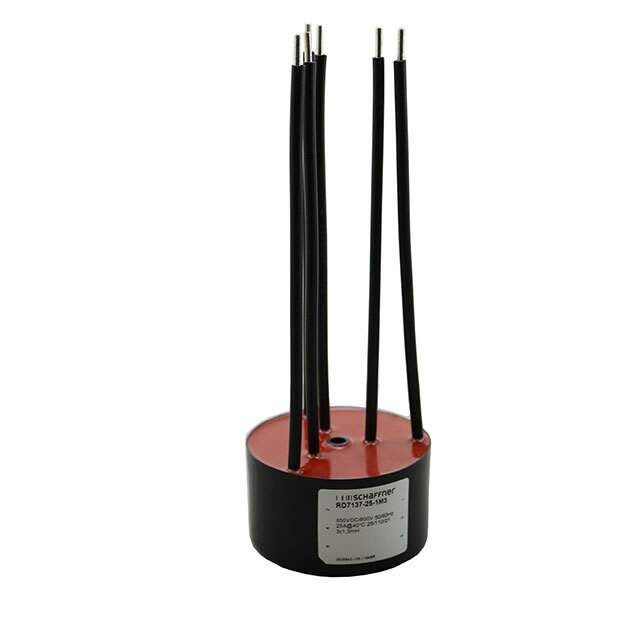

RD7137-25-1M3 Real Image
Same model may have multiple batches, images only for reference.

RD7137-25-1M3

Part No RD7137-25-1M3
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 1.3MH 25A 3LN TH / 1.3 mH @ 400 Hz 3 Line Common Mode Choke Through Hole 25A (Typ) DCR 4.45mOhm (Typ)
Datasheet
RD7137-25-1M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RD
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 1.3 mH @ 400 Hz
Current Rating (Max) 25A (Typ)
DC Resistance (DCR) (Max) 4.45mOhm (Typ)
Voltage Rating - DC 850V
Voltage Rating - AC 600V
Temperature Range - Operating -25°C ~ 110°C
Mounting Type Through Hole
Dimension 2.756" L x 2.756" W (70.00mm x 70.00mm)
Height (Max) 1.594" (40.50mm)
Base Product Number RD7137
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 292-147,RD7137-25-1M3-ND,806046,817-2339
Standard Package 50
Win Source Part Number 1142617-RD7137-25-1M3
Ultra Librarian 3D Model Ultra Librarian RD7137-25-1M3 CAD Model

Description

The Schaffner EMC Inc. RD7137-25-1M3 Common Mode Choke is a power line filter that can handle a maximum current rating of 25A (Typ) and has a voltage rating of 600V AC and 850V DC from Schaffner EMC Inc.

  • Current Rating: 25A (Typ)
  • Voltage Rating: 600V AC, 850V DC
  • Inductance: 1.3 mH @ 400 Hz
  • DC Resistance: 4.45mOhm (Typ)
  • Operating Temperature: -25°C to 110°C
  • Height: 1.594" (40.50mm)
  • Mounting Type: Through-Hole
  • Package: Tray
  • Application: Filters and Common Mode Chokes
