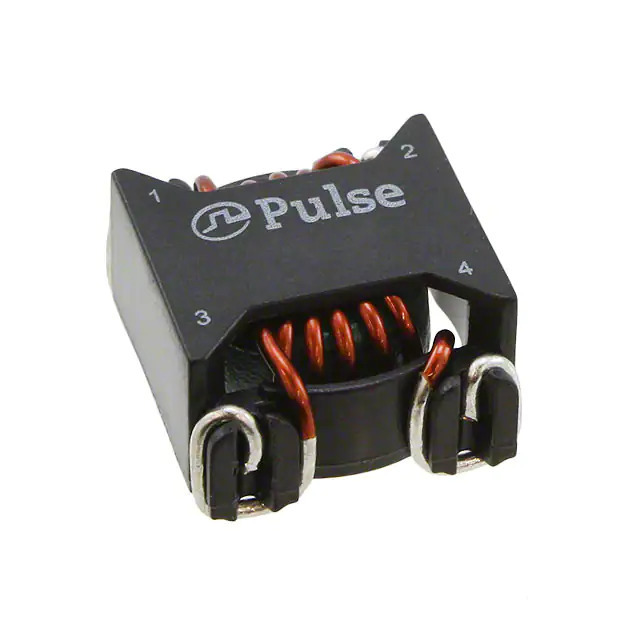

PA2754NL Pulse
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse Electronics
Series -
Package Tube
Product Status Active
Filter Type -
Number of Lines 2
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 3.75mOhm
Voltage Rating - DC -
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 130°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.750" L x 0.815" W (19.05mm x 20.70mm)
Height (Max) 0.440" (11.18mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369410-PA2754NL
Ultra Librarian 3D Model Ultra Librarian PA2754NL CAD Model

Description

The 1369410-PA2754NL is a common mode choke designed for use in filters by Pulse Electronics.

  • Temperature Range: -40°C to 130°C
  • Current Rating: 10A
  • DC Resistance: 3.75mOhm
  • Package: Horizontal
  • PC Pads: 4
  • Mounting Type: Surface Mount
  • Size: 0.750" L x 0.815" W (19.05mm x 20.70mm)
  • Height: 0.440" (11.18mm)
  • Status: Active
