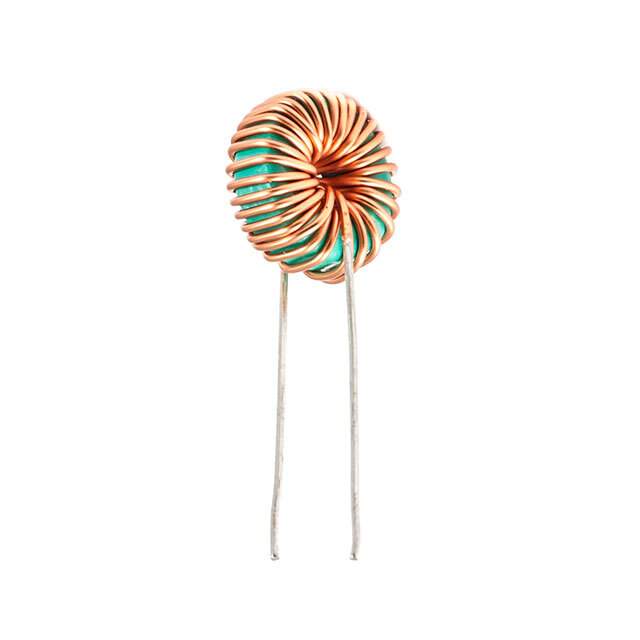

SN10-300 Real Image
Same model may have multiple batches, images only for reference.

SN10-300

Part No SN10-300
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 40UH 3A 2LN TH / 40 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 3A DCR 35mOhm
Datasheet
SN10-300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 40 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 35mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 0.886" (22.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names UALSN103000000,399-20558
Standard Package 1,000
Win Source Part Number 1132375-SN10-300
Ultra Librarian 3D Model Ultra Librarian SN10-300 CAD Model

Description

The KEMET SN10-300 is a common mode choke filter that is a part of the SN series.

  • Series: SN
  • Maximum Current: 3A
  • Inductance: 40μH @ 100kHz
  • Filter Type: Power Line
  • Lines: 2
  • Package: Bulk
  • Standard Package: 1,000
  • Height: 0.886 inches (22.50mm)
  • DC Resistance (DCR): 35mOhm
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, No Base, 2 PC Pin
  • Operating Temperature Range: -25°C to 105°C
  • ECCN: EAR99
