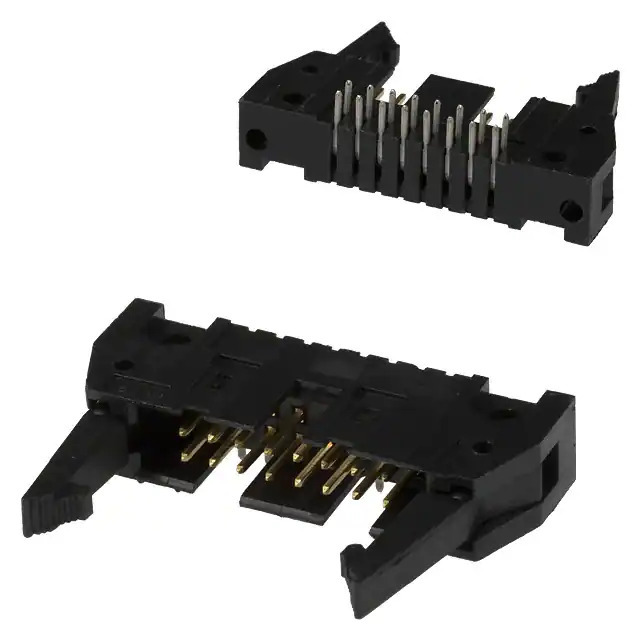

5499141-3 TE Connectivity
Same model may have multiple batches, images only for reference.

5499141-3

Part No 5499141-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length -
Insulation Height 0.315" (8.00mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material -
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications -
Base Product Number 5499141
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377512-5499141-3
Ultra Librarian 3D Model Ultra Librarian 5499141-3 CAD Model

Description

The AMP-Latch 5499141 is a header connector manufactured by TE Connectivity AMP Connectors.

  • Connector Type: Header
  • Pin Type: Male
  • Mounting Type: Through Hole, Right Angle
  • Number of Positions: 16
  • Number of Rows: 2
  • Pitch: 0.100 inches (2.54mm)
  • Keying: Keying Slot
  • Mounting: Mounting Flange
  • Temperature Range: -65°C to 105°C
  • Product Status: Active
  • Series: AMP-Latch
  • Base Product Number: 5499141
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
  • Current Rating: 1A per contact
  • Locking Feature: Latch Lock/Eject Hooks
  • Fastening Type: Long
  • Contact Shape: Square
