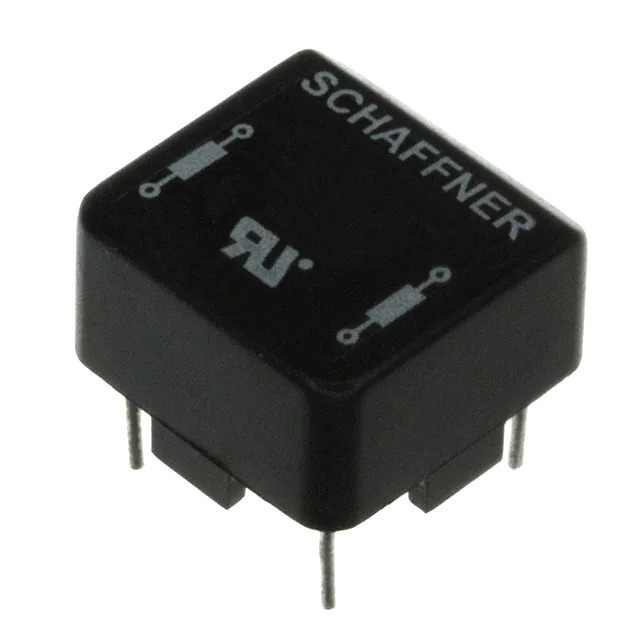

RN102-1.5-02 Schaffner EMC Inc.
Same model may have multiple batches, images only for reference.

RN102-1.5-02

Part No RN102-1.5-02
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 1.6MH 1.5A 2LN TH / 1.6 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A (Typ) DCR 100mOhm (Typ)
Datasheet
RN102-1.5-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tray
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.6 mH @ 10 kHz
Current Rating (Max) 1.5A (Typ)
DC Resistance (DCR) (Max) 100mOhm (Typ)
Voltage Rating - DC -
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Ratings -
Approval Agency UR, VDE
Features -
Mounting Type Through Hole
Size / Dimension 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height (Max) 0.366" (9.30mm)
Package / Case Horizontal, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1356698-RN102-1.5-02
Ultra Librarian 3D Model Ultra Librarian RN102-1.5-02 CAD Model

Description

The RN102-1.5-02 is a common mode choke filter designed for power line applications from Schaffner EMC Inc.

  • Voltage Rating: 250V AC
  • Current Rating: 1.5A
  • Package: Horizontal
  • Pins: 4 PC pins
  • Mounting: Through-Hole
  • Size: 0.551" L x 0.551" W (14.00mm x 14.00mm)
  • Height: 0.366" (9.30mm)
  • Temperature Range: -40°C to 125°C
  • REACH: Compliant
  • DC Resistance: 100mOhm
  • Approvals: UR and VDE
  • Product Status: Obsolete
