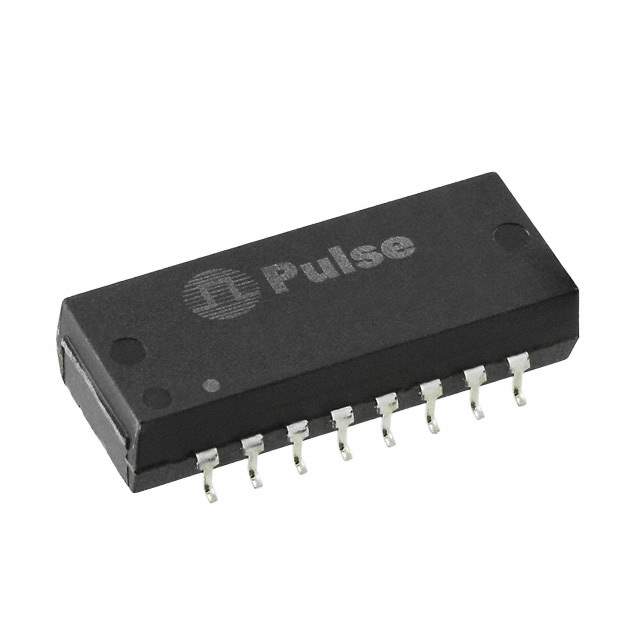

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel package
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD
Dimension 1.000" L x 0.390" W (25.40mm x 9.91mm)
Height - Seated (Maximum) 0.245" (6.22mm)
Weight 0.11 oz (3.13g)
Win Source Part Number 775492-H1086NLT
Popularity Medium
Supply and Demand Status Limited
Family Name H1086
Introduction Date September 12, 2007
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian H1086NLT CAD Model

Description

The Pulse Electronics Corporation H1086NLT is a transformer that is designed for use in isolation and data interface applications.

  • Mounting: SMD
  • ECCN: EAR99
  • Halogen Free: No
  • Supply and Demand Status: Limited
  • Popularity: Medium
