Same model may have multiple batches, images only for reference.

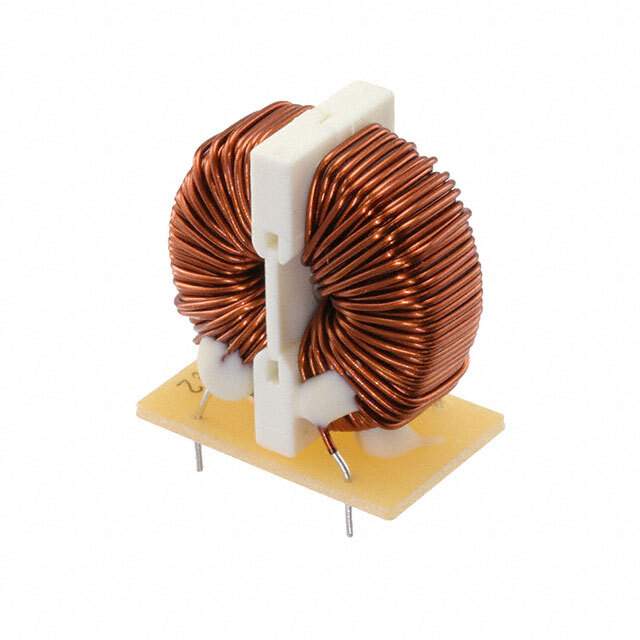

SC-02-100J Real Image
Same model may have multiple batches, images only for reference.

SC-02-100J

Part No SC-02-100J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 220mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
Other Names UALSC02100J000,399-SC-02-100J
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276999-SC-02-100J
Ultra Librarian 3D Model Ultra Librarian SC-02-100J CAD Model

Description

The KEMET SC-02-100J is a common mode choke designed for use in power line filters.

  • Maximum Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 2A
  • Height: 1.063" (27.00mm)
  • Package: Tray
  • Units per Package: 400
  • Lines: Two
  • Inductance: 10 mH @ 100 kHz
  • DC Resistance (DCR): 220mOhm maximum
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperature Range: 25°C to 120°C
