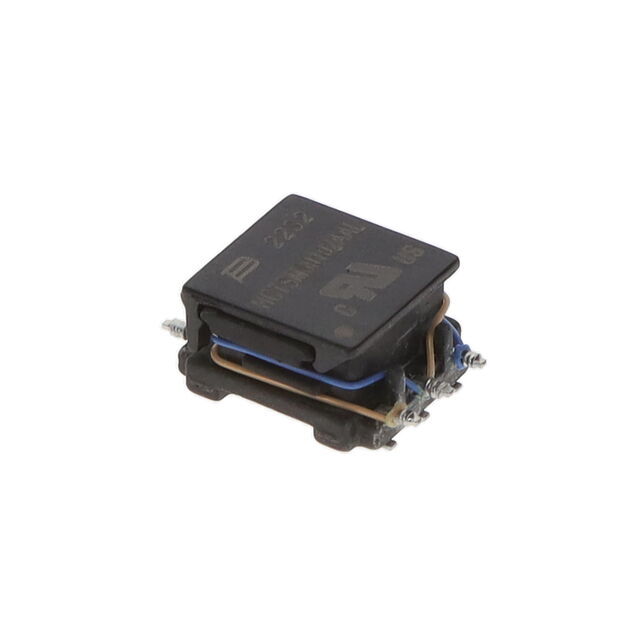

Same model may have multiple batches, images only for reference.
HCTSM80102AAL-E Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HCTSM80102AAL-E

Part No HCTSM80102AAL-E
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description XFMR 3.3-5V/3.3-15V,350MA PK TR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category TransformersPulse Transformers
Manufacturer Bourns Inc.
Series HCT
Part Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 250μH
ET (Volt-Time) 11.0VμS
Mounting Type Surface Mount
Size / Dimension 0.484" L x 0.425" W (12.30mm x 10.80mm)
Height - Seated (Max) 0.256" (6.50mm)
Operating Temperature -40°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian HCTSM80102AAL-E CAD Model
