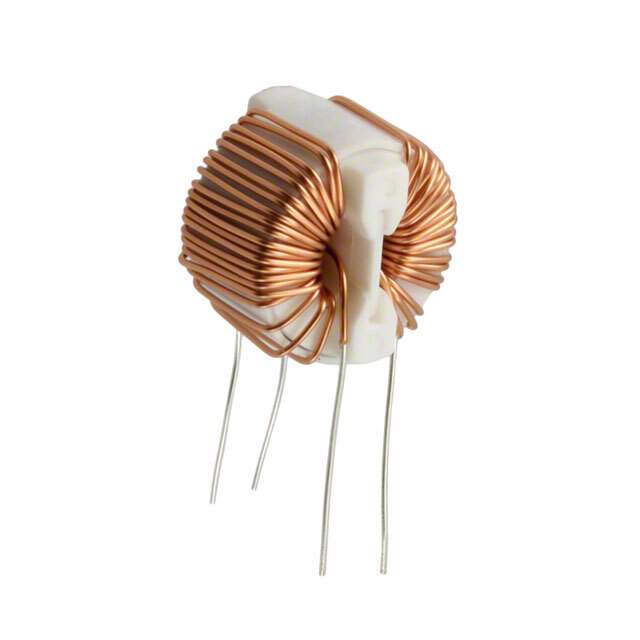

SC-01-20G

Part No SC-01-20G
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-01
Other Names 399-10630,UALSC0120G0000
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277065-SC-01-20G
Ultra Librarian 3D Model Ultra Librarian SC-01-20G CAD Model

Description

This power line filter is a common mode choke designed to filter out unwanted noise from electrical circuits.

  • Voltage Rating: 250V AC and DC
  • Maximum Current: 1A
  • Inductance @ 100kHz: 2mH
  • DC Resistance: 100mOhm
  • Mounting Type: Through-hole
  • Package/Case: Vertical, no-base, 4 PC pin
  • Operating Temperature Range: -25°C to 105°C
  • Dimension: 0.689 inches in diameter and 0.551 inches in width (17.50mm x 14.00mm)
  • Series: SC series of common mode chokes from KEMET
