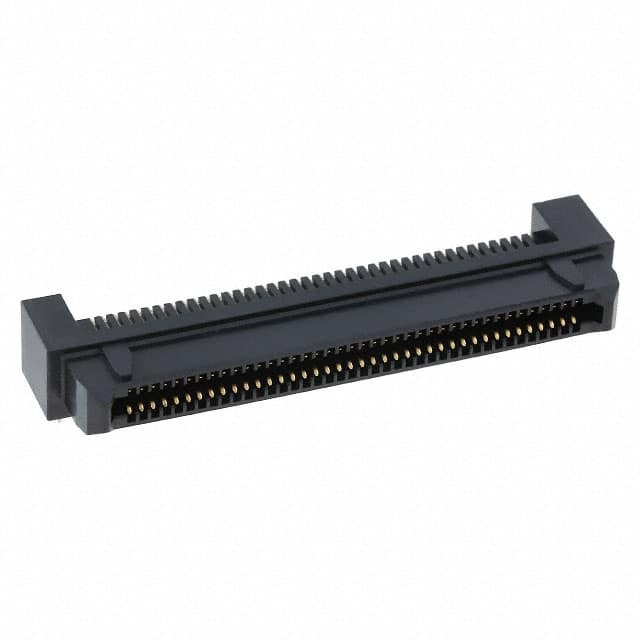

TX24A-80R-LT-H1E
Same model may have multiple batches, images only for reference.

TX24A-80R-LT-H1E

Part No TX24A-80R-LT-H1E
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 80POS R/A GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series TX24A
Package Tray
Product Status Active
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 80
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole, Right Angle
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.354" (9.00mm)
Base Product Number TX24A-80
Standard Package 462 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 848501-TX24A-80R-LT-H1E
Ultra Librarian 3D Model Ultra Librarian TX24A-80R-LT-H1E CAD Model

Description

The 848501-TX24A-80R-LT-H1E is a rectangular connector array from the TX24A series. It is a mezzanine connector with 80 positions and a pitch of 0.050" (1.27mm).

  • Positions: 80
  • Pitch: 0.050" (1.27mm)
  • Connector Series: TX24A
  • Connector Type: Mezzanine
  • Features: Board lock
  • Connector Style: Receptacle
  • Contact Type: Outer shroud contacts
  • Height Above Board: 0.354" (9.00mm)
  • Mounting Type: Through hole, right angle
  • Contact Finish: Gold
  • Manufacturer: JAE Electronics
