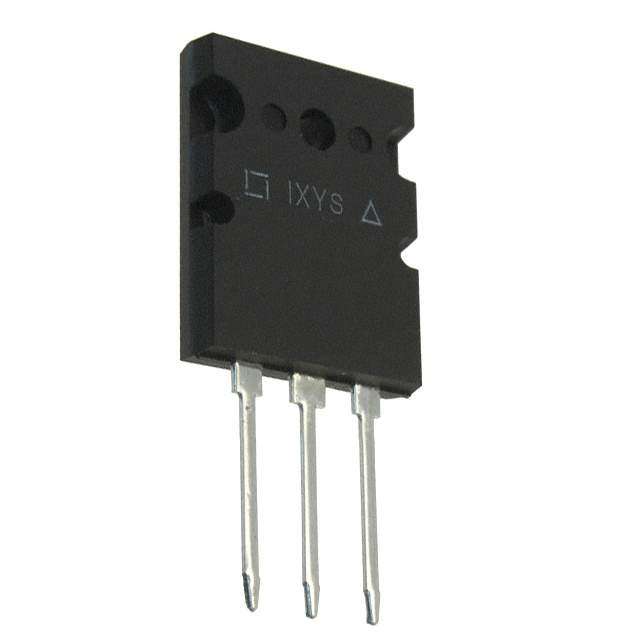

IXFB72N55Q2

Get a Quote

Part No	IXFB72N55Q2
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 550V 72A PLUS264 / N-Channel 550 V 72A (Tc) 890W (Tc) Through Hole PLUS264™
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	IXYS
Series	HiPerFET™, Q2 Class
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	550 V
Current - Continuous Drain (Id) @ 25°C	72A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	72mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	258 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	10500 pF @ 25 V
Power Dissipation (Max)	890W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PLUS264™
Package / Case	TO-264-3, TO-264AA
Base Product Number	IXFB72
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	25
Win Source Part Number	973787-IXFB72N55Q2
Ultra Librarian 3D Model	Ultra Librarian IXFB72N55Q2 CAD Model

Alternative Products

Description

The IXFB72N55Q2 is a HiPerFET™ Q2 Class N-Channel MOSFET transistor from IXYS that is specifically designed for discrete semiconductor products such as transistors, FETs, MOSFETs, and single devices.

Package: Tube
Standard Package: 25
MOSFET Technology: Yes
Drain to Source Voltage (Vdss): 550 V
Continuous Drain Current (Id) @ 25°C: 72A (Tc)
Rds On (Max) @ Id, Vgs: 72mOhm @ 500mA, 10V
Gate Charge (Qg) (Max) @ Vgs: 258 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 10500 pF @ 25 V
Operating Temperature Range: -55°C to 150°C (TJ)
