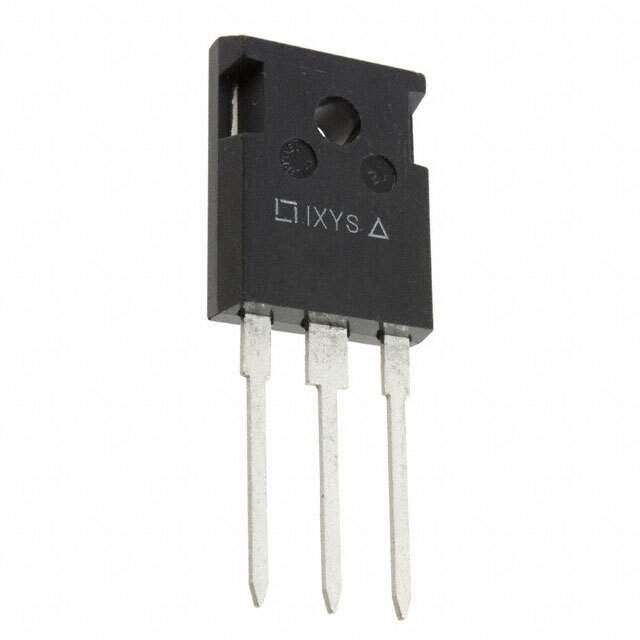

CS20-16IO1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Voltage - Off State 1600V
Voltage - Gate Trigger (Vgt) (Max) 1V
Current - Gate Trigger (Igt) (Max) 65mA
Voltage - On State (Vtm) (Max) 2.1V
Current - On State (It (AV)) (Max) 19A
Current - On State (It (RMS)) (Max) 30A
Current - Hold (Ih) (Max) 100mA
Current - Off State (Max) 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 200A, 215A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 1030315-CS20-16IO1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CS20-16IO1 CAD Model

Description

The IXYS CS20-16IO1 is a standard recovery SCR (Silicon Controlled Rectifier) that is used in various applications.

  • Voltage-off State: 1600V
  • Voltage Gate Trigger: 1V
  • Current Gate Trigger: 65mA
  • Maximum On-State Current: 19A
  • Maximum On-State RMS Current: 30A
  • Current-Off State: 2mA
  • Non-Rep. Surge (50Hz): 200A
  • Non-Rep. Surge (60Hz): 215A
  • Supply and Demand Status: Sufficient
  • Packaging: Tube/rail
  • Temperature Range: -40°C to 125°C
  • Mounting: Through hole
