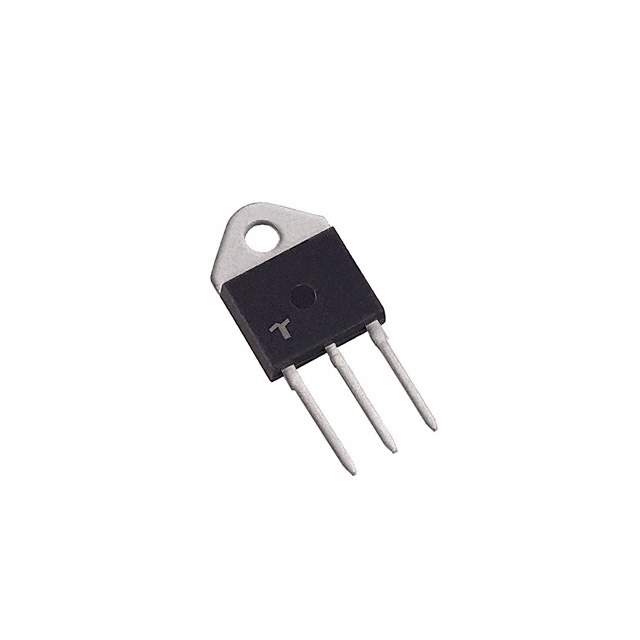

The S6035K is a sensitive gate silicon TRIAC designed for full-wave AC control applications. Manufactured by Teccor Electronics, this TRIAC is suitable for interfacing directly to microcontrollers, logic circuits, and other low-power control systems. It provides bidirectional control capability, making it ideal for switching AC loads in various applications.

Applications

• Light dimmers
• Motor speed controls
• Heater controls
• Solid-state relays
• Solenoid drivers

Features

• Sensitive gate triggering
• High blocking voltage capability
• High surge current capability
• Glass-passivated junction for reliability
• RoHS compliant

Benefits

• Direct interface to low-level logic circuits simplifies design.
• High blocking voltage ensures safe operation in high-voltage AC applications.
• Robust surge current handling capability prevents damage from transient surges.
• Enhanced reliability due to glass-passivated junction.
• Environmentally friendly due to RoHS compliance.

Specifications

The S6035K has a voltage rating of 600V and an RMS on-state current rating of 3A. Its gate trigger current is typically very low, allowing for easy interfacing with low-power control circuits. The device is commonly available in a TO-251 (I-PAK) package for efficient heat dissipation. The holding current is typically around 5 mA, and the peak surge current capability is around 25A for a short duration. The operating junction temperature range is typically from -40°C to +125°C.
