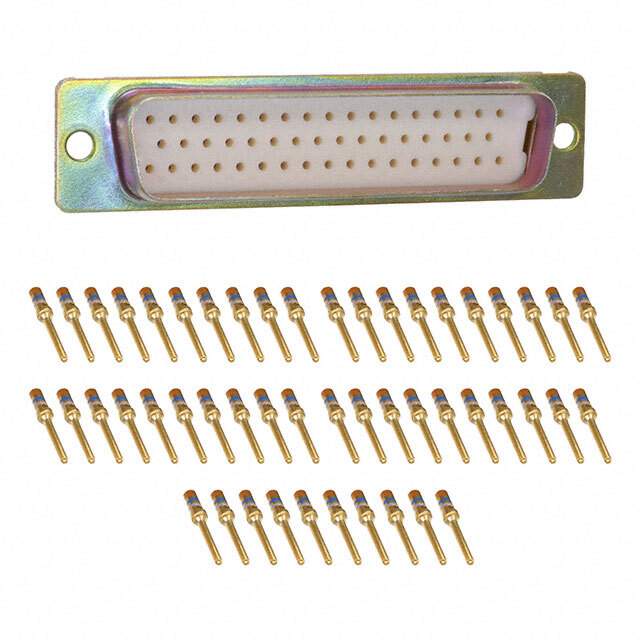

M24308/4-5F Real Image
Same model may have multiple batches, images only for reference.

M24308/4-5F

Part No M24308/4-5F
Manufacturer ITT Cannon, LLC
Catalog D - Sub Connectors
Description 50 Position D-Sub Plug, Male Pins Connector, Panel Mount Crimp
Datasheet
M24308/4-5F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family D-Sub Connectors
Manufacturer ITT Cannon, LLC
Series Military, MIL-DTL-24308, D*MAM
Packaging Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 3
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Mounting Style Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Termination Crimp
Features Shielded
Shell Material, Finish Steel, Yellow Chromate Plated Cadmium
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Operating Temperature Range -55°C ~ 150°C
Current Rating 7.5A
Housing Material Thermoplastic
Win Source Part Number 141912-M24308/4-5F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian M24308/4-5F CAD Model

Description

The ITT Cannon, LLC 141912-M24308/4-5F is a D-sub connector from the Military, MIL-DTL-24308, D*MAM series.

  • Connector Type: Plug with male pins
  • Positions: 50
  • Termination: Crimp
  • Mounting Type: Panel mount
  • Temperature Range: -55°C to 150°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
